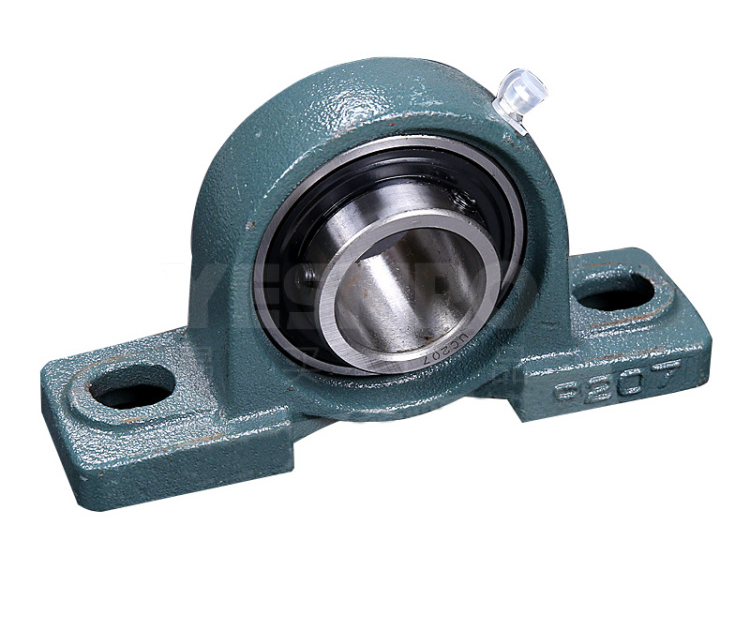

Mounted Bearing Unit

Features:

Mounted bearing unit is a kind of bearing unit that combines rolling bearing and bearing housings. Most of the outer spherical bearings are made of spherical outer diameter and installed together with bearing housings with spherical inner holes. They have various structural forms and good versatility and interchangeability.

At the same time, this type of bearing also has a certain self-alignment in design, easy to install, and has a double-structured sealing device, which can work in harsh environments.

We supply complete rang of insert bearings with housings, UCP200 Series, UCP300 Series, UCF200 Series, UCF300 Series, UCFC200 Series, UCFL200 Series, UCFL300 Series, UCFB200 Series, UCPA200 Series, UCPH200 Series, UCT200 Series, UCT300 Series, etc.

Send E-mail Request Quote

Product Parameter

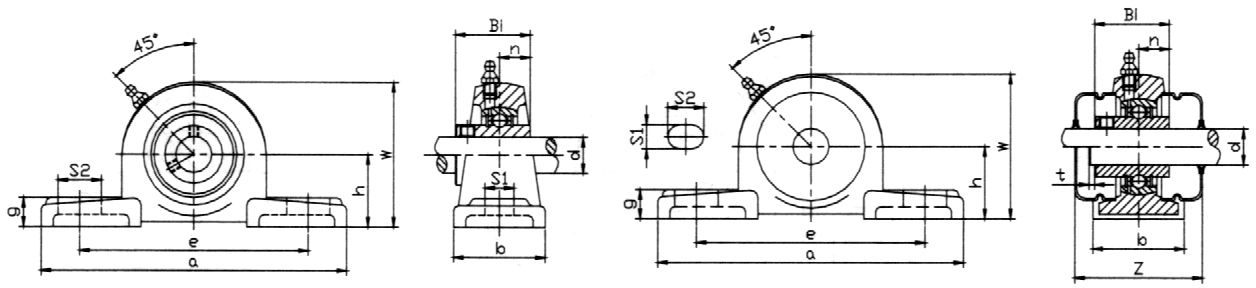

UCP200 Series

UCP200 Series Mounted Bearing Unit

UCP200 Series UCP200

Bearing Unit No.	Shaft Dia d		Dimensions(mm)												Bolt Used		Bearing No.	Housing No.	Housing Wt (kg)
			h	a	e	b	S2	S1	g	w	t	Z	Bi	n	(mm)	(in)
	(in)	(mm)
UCP201-8	1/2		30.2	127	95	38	19	13	14	62	2	51	31	12.7	M10	3/8	UC201-8	P203	0.33
UCP202-9	9/16																UC202-9
UCP202-10	5/8																UC202-10
UCP203-11	11/16																UC203-11
UCP201		12															UC201
UCP202		15															UC202
UCP203		17															UC203
UCP204-12	3/4		33.3	127	95	38	19	13	14	65	2	51	31	12.7	M10	3/8	UC204-12	P204	0.46
UCP204		20															UC204
UCP205-13	13/16	25	36.5	140	105	38	19	13	15	71	2	57	34.1	14.3	M10	3/8	UC205-13	P205	0.6
UCP205-14	7/8																UC205-14
UCP205-15	15/16																UC205-15
UCP205-16	1/1																UC205-16
UCP205																	UC205
UCP206-17	1/16	30	42.9	165	121	48	21	17	17	83	2	62	38.1	15.9	M14	1/2	UC206-17	P206	0.97
UCP206-18	1/8																UC206-18
UCP206-19	3/16																UC206-19
UCP206-20	1/4																UC206-20
UCP206																	UC206
UCP207-20	1/4	35	47.6	167	127	48	21	17	18	93	3	72	42.9	17.5	M14	1/2	UC207-20	P207	1
UCP207-21	5/16																UC207-21
UCP207-22	3/8																UC207-22
UCP207-23	7/16																UC207-23
UCP207																	UC207
UCP208-24	1/2	40	49.2	184	137	54	21	17	18	98	3	82	49.2	19	M14	1/2	UC208-24	P208	1.3
UCP208-25	9/16																UC208-25
UCP208																	UC208
UCP209-26	5/8	45	54	190	146	54	21	17	20	106	3	82	49.2	19	M14	1/2	UC209-26	P209	1.4
UCP209-27	11/16																UC209-27
UCP209-28	3/4																UC209-28
UCP209																	UC209
UCP210-29	1-13/16	50	57.2	206	159	60	25	20	21	114	3	87	51.6	19	M16	5/8	UC210-29	P210	1.83
UCP210-30	7/8																UC210-30
UCP210-31	1-15/16																UC210-31
UCP210-32	1/2																UC210-32
UCP210																	UC210
UCP211-32	1/2	55	63.5	219	171	60	25	20	23	126	4	92	55.6	22.2	M16	5/8	UC211-32	P211	2.4
UCP211-33	1/16																UC211-33
UCP211-34	1/8																UC211-34
UCP211-35	3/16																UC211-35
UCP211																	UC211
UCP212-36	1/4	60	69.8	241	184	70	25	20	25	138	4	102	65.1	25.4	M16	5/8	UC212-36	P212	2.8
UCP212-37	5/16																UC212-37
UCP212-38	3/8																UC212-38
UCP212-39	7/16																UC212-39
UCP212																	UC212
UCP213-40	1/2	65	76.2	265	203	70	29	25	27	151	4	107	65.1	25.4	M20	3/4	UC213-40	P213	3.5
UCP213-41	9/16																UC213-41
UCP213																	UC213
UCP214-42	5/8	70	79.4	266	210	72	31	25	27	157			74.6	30.2	M20	3/4	UC214-42	P214	4.45
UCP214-43	11/16																UC214-43
UCP214-44	3/4																UC214-44
UCP214																	UC214
UCP215-45	2-13/16	75	82.6	275	217	74	31	25	28	163			77.8	33.3	M20	3/4	UC215-45	P215	4.9
UCP215-46	7/8																UC215-46
UCP215-47	2-15/16																UC215-47
UCP215-48	1/3																UC215-48
UCP215																	UC215
UCP216-50	1/8	80	88.9	292	232	78	31	25	30	175			82.6	33.3	M20	3/4	UC216-50	P216	5.8
UCP216																	UC216
UCP217-52	1/4	85	95.2	310	247	83	31	25	32	187			85.7	34.1	M20	3/4	UC217-52	P217	6.9
UCP217																	UC217
UCP218-56	1/2	90	101.6	327	262	88	33	27	33	200			96	39.7	M22	7/8	UC218-56	P218	8.1
UCP218																	UC218

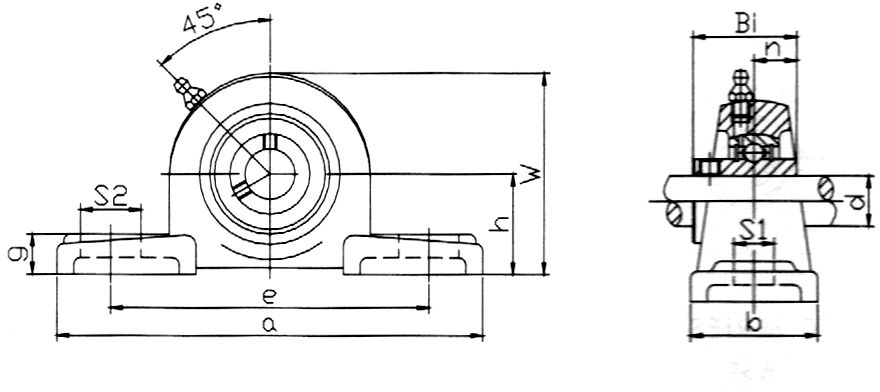

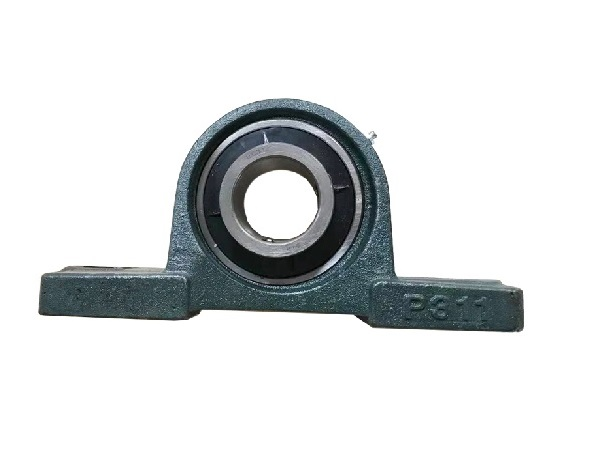

UCP300 Series

UCP300 Series Mounted Bearing Unit

UCP300 Series UCP300

Bearing Unit NO.	Shaft Dia d		Dimensions(mm)										Bolt Used		Bearing No.	Housing No.	Housing Wt (kg)
	(in)	(mm)	h	a	e	b	s2	s1	g	w	Bi	n	(in)	(mm)
UCP305-14	7/8	25	45	175	132	45	20	17	15	85	38	15	1/2	M14	UC305-14	P305	0.9
UCP305-15	15/16														UC305-15
UCP305-16	1														UC305-16
UCP305															UC305
UCP306-18	1/8	30	50	180	140	50	20	17	18	95	43	17	1/2	M14	UC306-18	P306	1.1
UCP306-19	3/16														UC306-19
UCP306															UC306
UCP307-20	1 1/4	35	56	210	160	56	25	17	20	106	48	19	1/2	M14	UC307-20	P307	1.95
UCP307-21	1 5/16														UC307-21
UCP307-22	1 3/8														UC307-22
UCP307-23	1 7/16														UC307-23
UCP307															UC307
UCP308-24	1 1/2	40	60	220	170	60	27	17	22	116	52	19	1/2	M14	UC308-24	P308	2.2
UCP308-25	1 9/16														UC308-25
UCP308															UC308
UCP309-26	1 5/8	45	67	245	190	67	30	20	24	129	57	22	5/8	M16	UC309-26	P309	3.3
UCP309-27	1 11/16														UC309-27
UCP309-28	1 3/4														UC309-28
UCP309															UC309
UCP310-30	1 7/8	50	75	275	212	75	35	20	27	143	61	22	5/8	M16	UC310-30	P310	4.8
UCP310-31	1-15/16														UC310-31
UCP310															UC310
UCP311-32	2	55	80	310	236	80	38	20	30	154	66	25	5/8	M16	UC311-32	P311	5.3
UCP311-34	2 3/8														UC311-34
UCP311-35	2 3/16														UC311-35
UCP311															UC311
UCP312-36	2 1/4	60	85	330	250	85	38	25	32	165	71	26	3/4	M20	UC312-36	P312	6.3
UCP312-38	2 3/8														UC312-38
UCP312-39	2 7/16														UC312-39
UCP312															UC312
UCP313-40	2 1/2	65	90	340	260	90	38	25	33	176	75	30	3/4	M20	UC313-40	P313	8
UCP313															UC313
UCP314-44	2 3/4	70	95	360	280	90	40	27	35	187	78	33	7/8	M22	UC314-44	P314	8.3
UCP314															UC314
UCP315-48	3	75	100	380	290	100	40	27	35	198	82	32	7/8	M22	UC315-48	P315	9.5
UCP315															UC315
UCP316-50	3 1/8	80	106	400	300	110	40	27	40	210	86	34	7/8	M22	UC316-50	P316	12.5
UCP316															UC315
UCP317-52	3 1/4	85	112	420	320	110	45	33	40	220	96	40	1	M27	UC317-52	P317	14.5
UCP317															UC317
UCP318-56	3 1/2	90	118	430	330	110	45	33	45	235	96	40	1	M27	UC318-56	P318	20.4
UCP318															UC318
UCP319-60	3 3/4	95	125	470	360	120	50	36	45	250	103	41	1 1/8	M30	UC319-60	P319	22.3
UCP319															UC319
UCP320-64	4	100	140	490	380	120	50	36	50	275	108	42	1 1/8	M30	UC320-64	P320	25
UCP320															UC320
UCP321		105	140	490	380	120	50	36	50	280	112	44	1 1/8	M30	UC321	P321	24
UCP322		110	150	520	400	140	55	40	55	300	117	46		M33	UC322	P322	27.5
UCP324		120	160	570	450	140	55	40	65	320	126	51		M33	UC324	P324	32.3
UCP326		130	180	600	480	140	55	40	75	355	135	54		M33	UC326	P326	41
UCP328		140	200	620	500	140	55	40	75	390	145	59		M33	UC328	P328	50

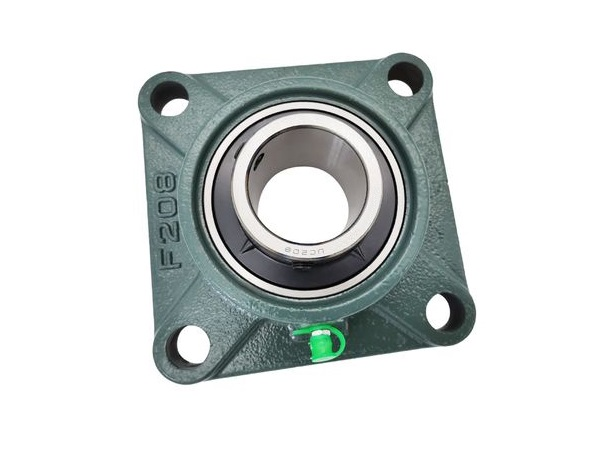

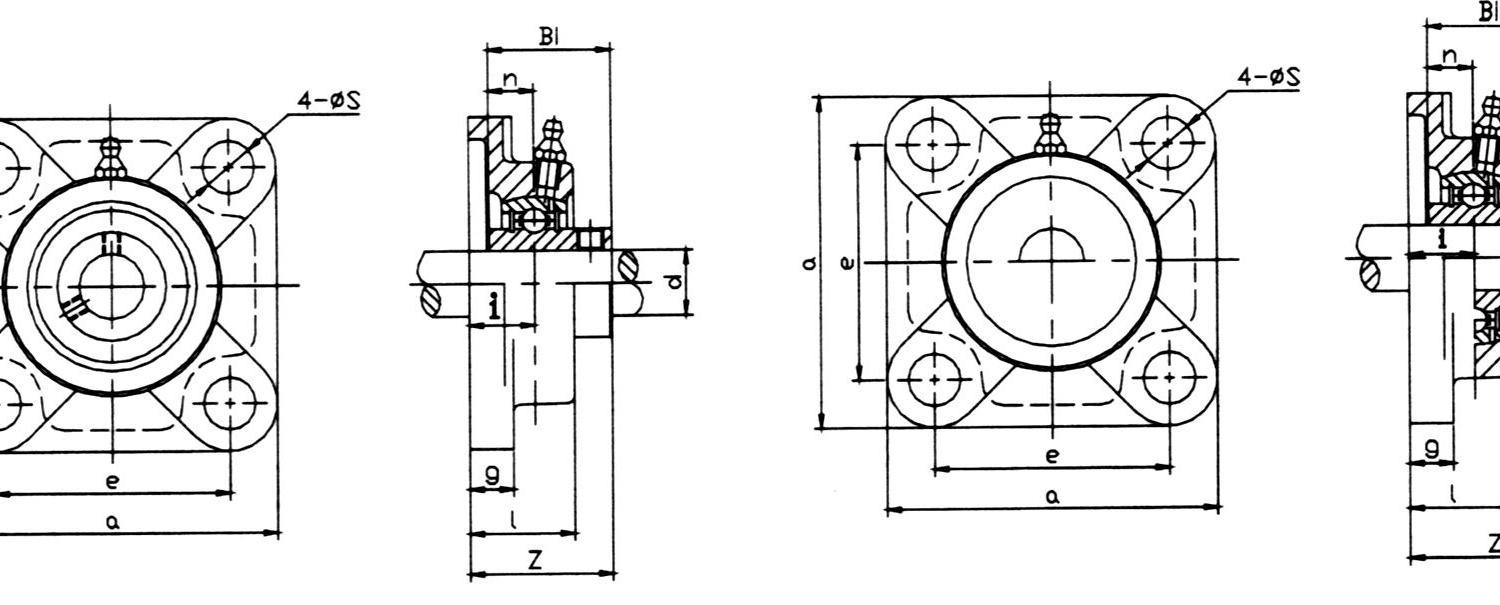

UCF200 Series

UCF200 Series Mounted Bearing Unit

UCF200 Series UCF200

Bearing Unit No.	Shaft Dia d		Dimensions(mm)											Bolt Used		Bearing No.	Housing No.	Housing Wt (kg)
			a	e	i	g	l	s	t	z1	z	Bi	n	(mm)	(in)
	(in)	(mm)
UCF201-8	1/2		76	54	15	11	25.5	11.5			31	26	10	M10	3/8	UCW201-8	F203	0.5
UCF202-9	9/16															UCW202-9
UCF202-10	5/8															UCW202-10
UCF203-11	11/16															UCW203-11
UCF201		12														UCW201
UCF202		15														UCW202
UCF203		17														UCW203
UCF201-8	1/2		86	64	15	12	25.5	12	2	40.5	33.3	31	12.7	M10	3/8	UC201-8	F204	0.6
UCF202-9	9/16															UC202-9
UCF202-10	5/8															UC202-10
UCF203-11	11/16															UC203-11
UCF204-12	3/4															UC204-12
UCF201		12														UC201
UCF202		15														UC202
UCF203		17														UC203
UCF204		20														UC204
UCF205-13	13/16		95	70	16	14	27	12	2	44.5	35.8	34.1	14.3	M10	3/8	UC205-13	F205	0.86
UCF205-14	7/8															UC205-14
UCF205-15	15/16															UC205-15
UCF205-16	1															UC205-16
UCF205		25														UC205
UCF206-17	1-1/16		108	83	18	14	31	12	2	49	40.2	38.1	15.9	M10	3/8	UC206-17	F206	1.1
UCF206-18	1-1/8															UC206-18
UCF206-19	1-3/16															UC206-19
UCF206-20	1-1/4															UC206-20
UCF206		30														UC206
UCF207-20	1-1/4		117	92	19	16	34	14	3	55	44.4	42.9	17.5	M12	7/16	UC207-20	F207	1.6
UCF207-21	1-5/16															UC207-21
UCF207-22	1-3/8															UC207-22
UCF207-23	1-7/16															UC207-23
UCF207		35														UC207
UCF208-24	1-1/2		130	102	21	16	36	16	3	62	51.2	49.2	19	M14	1/2	UC208-24	F208	1.9
UCF208-25	1-9/16															UC208-25
UCF208		40														UC208
UCF209-26	1-5/8		137	105	22	18	38	16	3	63	52.2	49.2	19	M14	1/2	UC209-26	F209	2.4
UCF209-27	1-11/16															UC209-27
UCF209-28	1-3/4															UC209-28
UCF209		45														UC209
UCF210-29	1-13/16		143	111	22	18	40	16	3	66.5	54.6	51.6	19	M14	1/2	UC210-29	F210	2.6
UCF210-30	1-7/8															UC210-30
UCF210-31	1-15/16															UC210-31
UCF210-32	2															UC210-32
UCF210		50														UC210
UCF211-32	2		162	130	25	20	43	19	4	71	58.4	55.6	22.2	M16	5/8	UC211-32	F211	3.5
UCF211-33	2-1/16															UC211-33
UCF211-34	2-1/8															UC211-34
UCF211-35	2-3/16															UC211-35
UCF211		55														UC211
UCF212-36	2-1/4		175	143	29	20	48	19	4	80	68.7	65.1	25.4	M16	5/8	UC212-36	F212	4.2
UCF212-37	2-5/16															UC212-37
UCF212-38	2-3/8															UC212-38
UCF212-39	2-7/16															UC212-39
UCF212		60														UC212
UCF213-40	2-1/2		187	149	30	20	50	19	4	83.5	69.7	65.1	25.4	M16	5/8	UC213-40	F213	5.3
UCF213-41	2-9/16															UC213-41
UCF213		65														UC213
UCF214-42	2-5/8		193	152	31	24	54	19			75.4	74.6	30.2	M16	5/8	UC214-42	F214	5.5
UCF214-43	2-11/16															UC214-43
UCF214-44	2-3/4															UC214-44
UCF214		70														UC214
UCF215-45	2-13/16		200	159	34	24	56	19			78.5	77.8	33.3	M16	5/8	UC215-45	F215	6.2
UCF215-46	2-7/8															UC215-46
UCF215-47	2-15/16															UC215-47
UCF215-48	3															UC215-48
UCF215		75														UC215
UCF216-50	3-1/8		208	165	34	24	58	23			83.3	82.6	33.3	M20	3/4	UC216-50	F216	7.7
UCF216		80														UC216
UCF217-52	3-1/4		220	175	36	26	63	23			87.6	85.7	34.1	M20	3/4	UC217-52	F217	9
UCF217		85														UC217
UCF218-56	3-1/2		235	187	40	26	68	23			96.3	96	39.7	M20	3/4	UC218-56	F218	11.3
UCF218		90														UC218

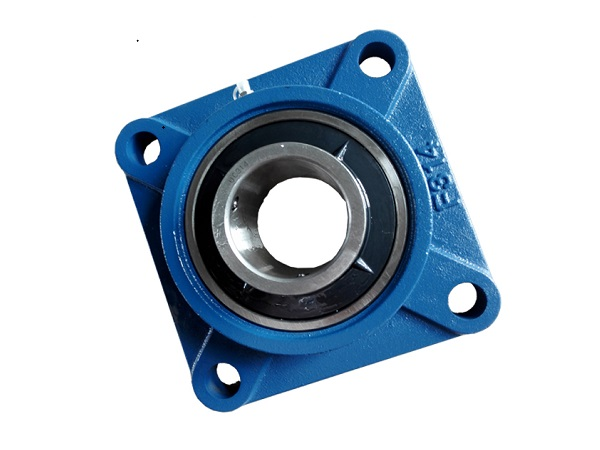

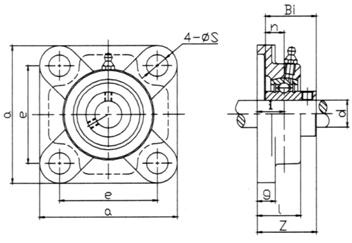

UCF300 Series

UCF300 Series Mounted Bearing Unit

UCF300 Series UCF300

Bearing Unit No.	Shaft Dia d		Dimensions(mm)									Bolt Used		Bearing No.	Housing No.	Housing Wt (kg)
			a	e	i	g	l	s	z	Bi	n	(mm)	(in)
	(in)	(mm)
UCF305-14	7/8	25	110	80	16	13	29	16	39	38	15	M14	1/2	UC305-14	F305	0.9
UCF305-15	15/16													UC305-15
UCF305-16	1													UC305-16
UCF305														UC305
UCF306-18	1-1/8	1-1/30	125	95	18	15	32	16	44	43	17	M14	1/2	UC306-18	F306	1.28
UCF306-19	1-3/16													UC306-19
UCF306														UC306
UCF307-20	1-1/4	1-2/4	135	100	20	16	36	19	49	48	19	M16	5/8	UC307-20	F307	1.57
UCF307-21	1-5/16													UC307-21
UCF307-22	1-3/8													UC307-22
UCF307-23	1-7/16													UC307-23
UCF307														UC307
UCF308-24	1-1/2	1-2/9	150	112	23	17	40	19	56	52	19	M16	5/8	UC308-24	F308	2
UCF308-25	1-9/16													UC308-25
UCF308														UC308
UCF309-26	1-5/8	1-2/14	160	125	25	18	44	19	60	57	22	M16	5/8	UC309-26	F309	2.6
UCF309-27	1-11/16													UC309-27
UCF309-28	1-3/4													UC309-28
UCF309														UC309
UCF310-30	1-7/8	1-2/19	175	132	28	19	48	23	67	61	22	M20	3/4	UC310-30	F310	2.68
UCF310-31	1-15/16													UC310-31
UCF310														UC310
UCF311-32	2	55	185	140	30	20	52	23	71	66	25	M20	3/4	UC311-32	F311	3.3
UCF311-34	2-1/8													UC311-34
UCF311-35	2-3/16													UC311-35
UCF311														UC311
UCF312-36	2-1/4	60	195	150	33	22	56	23	78	71	26	M20	3/4	UC312-36	F312	4.1
UCF312-38	2-3/8													UC312-38
UCF312-39	2-7/16													UC312-39
UCF312														UC312
UCF313-40	2-1/2	65	208	166	33	22	58	23	78	75	30	M20	3/4	UC313-40	F313	4.9
UCF313														UC313
UCF314-44	2-3/4	70	226	178	36	25	61	25	81	78	33	M22	7/8	UC314-44	F314	5.6
UCF314														UC314
UCF315-48	3	75	236	184	39	25	66	25	89	82	32	M22	7/8	UC315-48	F315	7
UCF315														UC315
UCF316-50	3-1/8	80	250	196	38	27	68	31	90	86	34	M27	1	UC316-50	F316	9
UCF316														UC316
UCF317-52	3-1/4	85	260	204	44	27	74	31	100	96	40	M27	1	UC317-52	F317	10.5
UCF317														UC317
UCF318-56	3-1/2	90	280	216	44	30	76	35	100	96	40	M30	1-1/8	UC318-56	F318	12.8
UCF318														UC318
UCF319-60	3-3/4	95	290	228	59	30	94	35	121	103	41	M30	1-1/8	UC319-60	F319	13.8
UCF319														UC319
UCF320-64	4	100	310	242	59	32	94	38	125	108	42	M33	1-1/4	UC320-64	F320	15.2
UCF320														UC320
UCF321		105	310	242	59	32	94	38	127	112	44	M33	1-1/4	UC321	F321	15
UCF322		110	340	266	60	35	96	41	131	117	46	M36		UC322	F322	21.8
UCF324		120	370	290	65	40	110	41	140	126	51	M36		UC324	F324	25.2
UCF326		130	410	320	65	45	115	41	146	135	54	M36		UC326	F326	37
UCF328		140	450	350	75	55	125	41	161	145	59	M36		UC328	F328	57.8

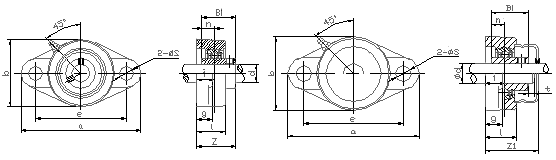

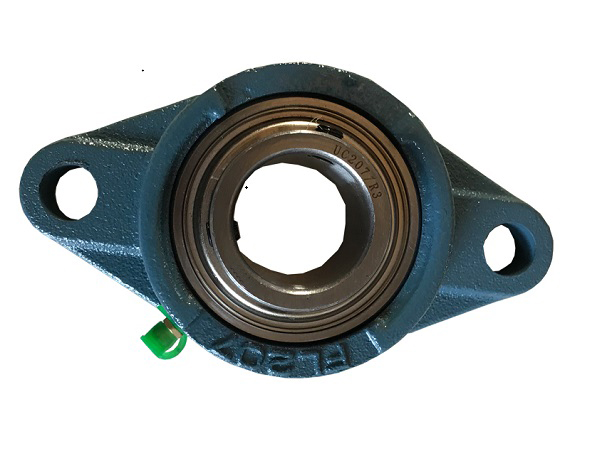

UCFL200 Series

UCFL200 Series Mounted Bearing Unit

UCFL200 Series UCFL200

Bearing Unit No.	Shaft Dia d		Dimensions(mm)												Bolt Used		Bearing No.	Housing No.	Housing Wt (kg)
			a	e	i	g	l	s	b	t	z1	z	Bi	n	(mm)	(in)
	(in)	(mm)
UCFL201-8	1/2		99	76.5	15	13	25.5	11.5	57			31	26	10	M10	3/8	UCW201-8	FL203	0.25
UCFL202-9	9/16																UCW202-9
UCFL202-10	5/8																UCW202-10
UCFL203-11	11/16																UCW203-11
UCFL201		12															UCW201
UCFL202		15															UCW202
UCFL203		17															UCW203
UCFL201-8	1/2		113	90	15	12	25.5	12	60	2	40.5	33.3	31	12.7	M10	3/8	UC201-8	FL204	0.28
UCFL202-9	9/16																UC202-9
UCFL202-10	5/8																UC202-10
UCFL203-11	11/16																UC203-11
UCFL204-12	3/4																UC204-12
UCFL201		12															UC201
UCFL202		15															UC202
UCFL203		17															UC203
UCFL204		20															UC204
UCFL205-13	13/16	25	130	99	16	14	27	16	68	2	44.5	35.7	34.1	14.3	M14	1/2	UC205-13	FL205	0.4
UCFL205-14	7/8																UC205-14
UCFL205-15	15/16																UC205-15
UCFL205-16	1																UC205-16
UCFL205																	UC205
UCFL206-17	1-1/16	30	148	117	18	14	31	16	80	2	49	40.2	38.1	15.9	M14	1/2	UC206-17	FL206	0.54
UCFL206-18	1-1/8																UC206-18
UCFL206-19	1-3/16																UC206-19
UCFL206-20	1-1/4																UC206-20
UCFL206																	UC206
UCFL207-20	1-1/4	35	161	130	19	16	34	16	90	3	55	44.4	42.9	17.5	M14	1/2	UC207-20	FL207	0.65
UCFL207-21	1-5/16																UC207-21
UCFL207-22	1-3/8																UC207-22
UCFL207-23	1-7/16																UC207-23
UCFL207																	UC207
UCFL208-24	1-1/2	40	175	144	21	16	36	16	100	3	62	51.2	49.2	19	M14	1/2	UC208-24	FL208	0.8
UCFL208-25	1-9/16																UC208-25
UCFL208																	UC208
UCFL209-26	1-5/8	45	188	148	22	18	38	19	108	3	63	52.2	49.2	19	M16	5/8	UC209-26	FL209	1.15
UCFL209-27	1-11/16																UC209-27
UCFL209-28	1-3/4																UC209-28
UCFL209																	UC209
UCFL210-29	1-13/16	50	197	157	22	18	40	19	115	3	66.5	54.6	51.6	19	M16	5/8	UC210-29	FL210	1.25
UCFL210-30	1-7/8																UC210-30
UCFL210-31	1-15/16																UC210-31
UCFL210-32	2																UC210-32
UCFL210																	UC210
UCFL211-32	2	55	224	184	25	20	43	19	130	4	71	58.4	55.6	22.2	M16	5/8	UC211-32	FL211	1.85
UCFL211-33	2-1/16																UC211-33
UCFL211-34	2-1/8																UC211-34
UCFL211-35	2-3/16																UC211-35
UCFL211																	UC211
UCFL212-36	2-1/4	60	250	202	29	20	48	23	140	4	80	68.7	65.1	25.4	M20	3/4	UC212-36	FL212	2.1
UCFL212-37	2-5/16																UC212-37
UCFL212-38	2-3/8																UC212-38
UCFL212-39	2-7/16																UC212-39
UCFL212																	UC212
UCFL213-40	2-1/2	65	258	210	30	24	50	23	155	4	83.5	69.7	65.1	25.4	M20	3/4	UC213-40	FL213	2.8
UCFL213-41	2-9/16																UC213-41
UCFL213																	UC213
UCFL214-42	2-5/8	70	265	216	31	24	54	23	160			75.4	74.6	30.2	M20	3/4	UC214-42	FL214	3.2
UCFL214-43	2-11/16																UC214-43
UCFL214-44	2-3/4																UC214-44
UCFL214																	UC214
UCFL215-45	2-13/16	75	275	225	34	24	56	23	165			78.5	77.8	33.3	M20	3/4	UC215-45	FL215	2.8
UCFL215-46	2-7/8																UC215-46
UCFL215-47	2-15/16																UC215-47
UCFL215-48	3																UC215-48
UCFL215																	UC215
UCFL216-50	3-1/8	80	290	233	34	24	58	25	180			83.3	82.6	33.3	M22	7/8	UC216-50	FL216	3.53
UCFL216																	UC216
UCFL217-52	3-1/4	85	305	248	36	26	63	25	190			87.6	85.7	34.1	M22	7/8	UC217-52	FL217	5.5
UCFL217																	UC217
UCFL218-56	3-1/2	90	320	265	40	26	68	25	205			96.3	96	39.7	M22	7/8	UC218-56	FL218	6
UCFL218																	UC218

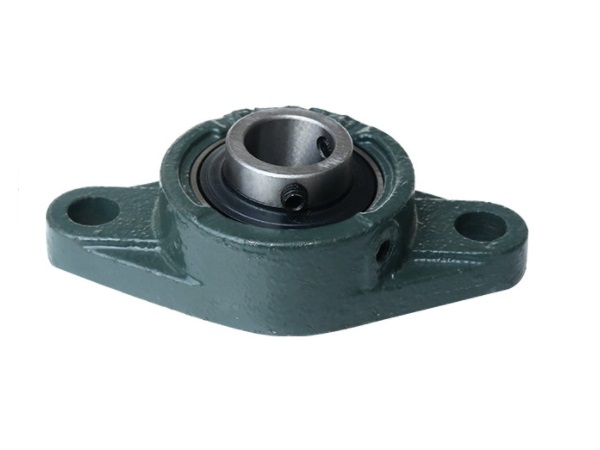

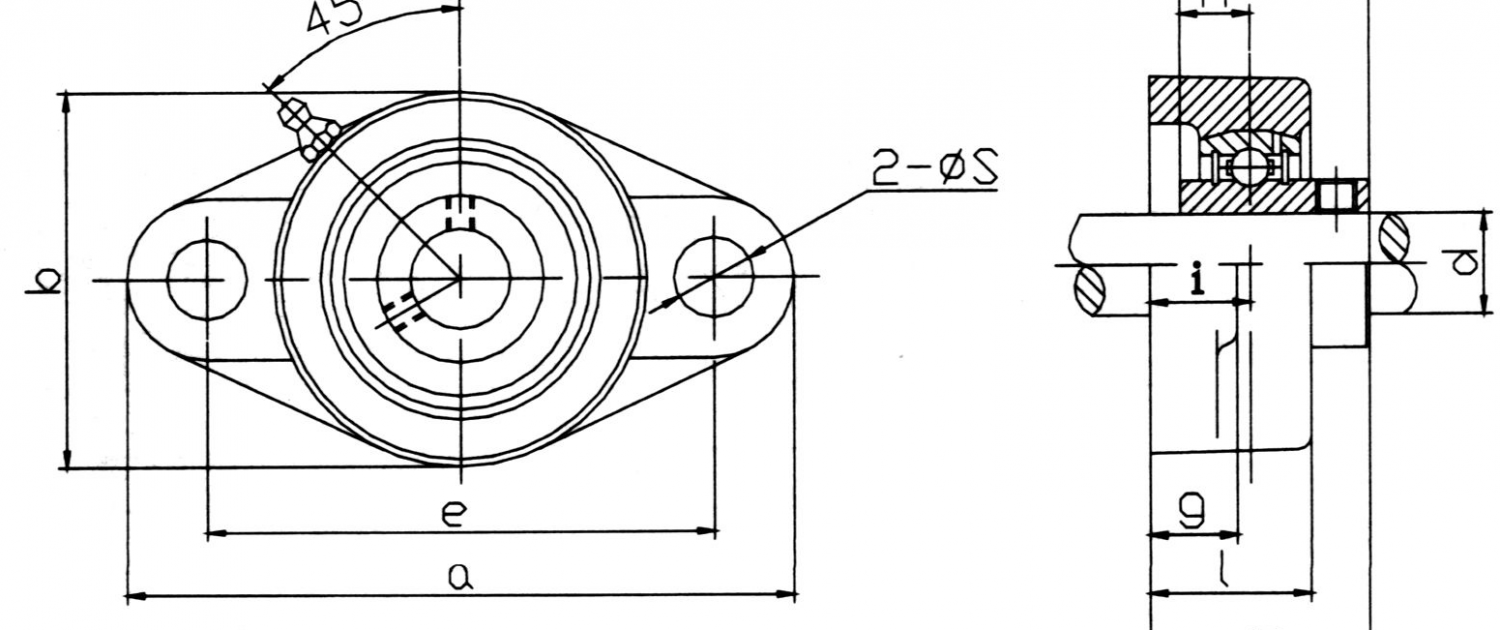

UCFL300 Series

UCFL300 Series Mounted Bearing Unit

UCFL300 Series UCFL300

Bearing Unit No.	Shaft Dia d		Dimensions(mm)										Bolt Used		Bearing No.	Housing No.	Weight (kg)
			a	e	i	g	l	s	b	z	Bi	n	(mm)	(in)
	(in)	(mm)
UCFL305-14	7/8	25	150	113	16	13	29	19	80	39	38	15	M16	5/8	UC305-14	FL305	1.2
UCFL305-15	15/16														UC305-15
UCFL305-16	1														UC305-16
UCFL305															UC305
UCFL306-18	1-1/8	30	180	134	18	15	32	23	90	44	43	17	M20	3/4	UC306-18	FL306	1.7
UCFL306-19	1-3/16														UC306-19
UCFL306															UC306
UCFL307-20	1-1/4	35	185	141	20	16	36	23	100	49	48	19	M20	3/4	UC307-20	FL307	2.2
UCFL307-21	1-5/16														UC307-21
UCFL307-22	1-3/8														UC307-22
UCFL307-23	1-7/16														UC307-23
UCFL307															UC307
UCFL308-24	1-1/2	40	200	158	23	17	40	23	112	56	52	19	M20	3/4	UC308-24	FL308	2.9
UCFL308-25	1-9/16														UC308-25
UCFL308															UC308
UCFL309-26	1-5/8	45	230	177	25	18	44	25	125	60	57	22	M22	7/8	UC309-26	FL309	3.6
UCFL309-27	1-11/16														UC309-27
UCFL309-28	1-3/4														UC309-28
UCFL309															UC309
UCFL310-30	1-7/8	50	240	187	28	19	48	25	140	67	61	22	M22	7/8	UC310-30	FL310	4.7
UCFL310-31	1-15/16														UC310-31
UCFL310															UC310
UCFL311-32	2	55	250	198	30	20	52	25	150	71	66	25	M22	7/8	UC311-32	FL311	5.7
UCFL311-34	2-1/8														UC311-34
UCFL311-35	2-3/16														UC311-35
UCFL311															UC311
UCFL312-36	2-1/4	60	270	212	33	22	56	31	160	78	71	26	M27	1	UC312-36	FL312	6.8
UCFL312-38	2-3/8														UC312-38
UCFL312-39	2-7/16														UC312-39
UCFL312															UC312
UCFL313-40	2-1/2	65	295	240	33	25	58	31	175	78	75	30	M27	1	UC313-40	FL313	7.8
UCFL313															UC313
UCFL314-44	2-3/4	70	315	250	36	28	61	35	185	81	78	33	M30	1-1/8	UC314-44	FL314	10
UCFL314															UC314
UCFL315-48	3	75	320	260	39	30	66	35	195	89	82	32	M30	1-1/8	UC315-48	FL315	12
UCFL315															UC315
UCFL316-50	3-1/8	80	355	285	38	32	68	38	210	90	86	34	M33	1-1/4	UC316-50	FL316	13.7
UCFL316															UC316
UCFL317-52	3-1/4	85	370	300	44	32	74	38	220	100	96	40	M33	1-1/4	UC317-52	FL317	15.4
UCFL317															UC317
UCFL318-56	3-1/2	90	385	315	44	36	76	38	235	100	96	40	M33	1-1/4	UC318-56	FL318	19
UCFL318															UC318
UCFL319-60	3-3/4	95	405	330	59	40	94	41	250	121	103	41	M36		UC319-60	FL319	20.6
UCFL319															UC319
UCFL320-64	4	100	440	360	59	40	94	44	270	125	108	42	M39		UC320-64	FL320	25.7
UCFL320															UC320
UCFL321		105	440	360	59	40	94	44	270	127	112	44	M39		UC321	FL321	27
UCFL322		110	470	390	60	42	96	44	300	131	117	46	M39		UC322	FL322	38
UCFL324		120	520	430	65	48	110	47	330	140	126	51	M42		UC324	FL324	43.67
UCFL326		130	550	460	65	50	115	47	360	146	135	54	M42		UC326	FL326	61.3
UCFL328		140	600	500	75	60	125	51	400	161	145	59	M45		UC328	FL328	90

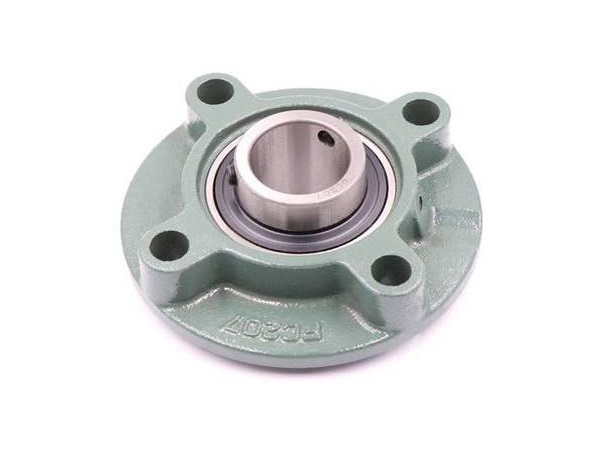

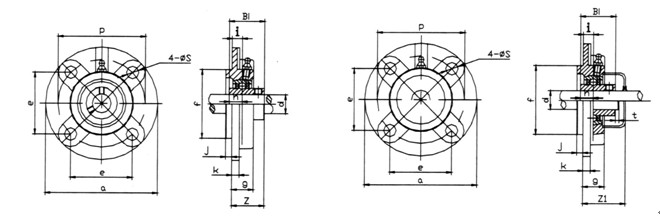

UCFC200 Series

UCFC200 Series Mounted Bearing Unit

UCFC200 Series

Bearing Unit NO.	Shaft Dia d		Dimensions(mm)														Bolt Used		Bearing No.	Housing No.	Housing
	(in)	(mm)	a	p	e	i	s	j	k	g	f	t	z1	z	Bi	n	mm	in			Wt (kg)
UCFC201-8	1/2		100	78	55.1	10	12	5	7	20.5	62	2	35.5	28.3	31	12.7	M10	3/8	UC201-8	FC204	0.55
UCFC202-9	9/16																		UC202-9
UCFC202-10	5/8																		UC202-10
UCFC203-11	11/16																		UC203-11
UCFC 204-12	3/4																		UC204-12
UCFC201		12																	UC201
UCFC202		15																	UC202
UCFC203		17																	UC203
UCFC204		20																	UC 204
UCFC205-13	13/16	25	115	90	63.6	10	12	6	7	21	70	2	38.5	29.7	34.1	14.3	M10	3/8	UC205-13	FC205	0.8
UCFC205-14	7/8																		UC205-14
UCFC205-15	15/16																		UC205-15
UCFC205-16	1																		UC205-16
UCFC205																			UC205
UCFC206-17	1-1/16	30	125	100	70.7	10	12	8	8	23	80	2	41	32.2	38.1	15.9	M10	3/8	UC206-17	FC206	1
UCFC206-18	1-1/8																		UC206-18
UCFC206-19	1-3/16																		UC206-19
UCFC206-20	1-1/4																		UC206-20
UCFC206																			UC206
UCFC207-20	1-1/4	35	135	110	77.8	11	14	8	9	26	90	3	47	36.4	42.9	17.5	M12	7/16	UC207-20	FC207	1.2
UCFC207-21	1-5/16																		UC207-21
UCFC207-22	1-3/8																		UC207-22
UCFC207-23	1-7/16																		UC207-23
UCFC207																			UC207
UCFC208-24	1-1/2	40	145	120	84.8	11	14	10	9	26	100	3	52	41.2	49.2	19	M12	7/16	UC208-24	FC208	1.45
UCFC208-25	1-9/16																		UC208-25
UCFC208																			UC208
UCFC209-26	1-5/8	45	160	132	93.3	10	16	12	14	26	105	3	51	40.2	49.2	19	M14	1/2	UC209-26	FC209	2.1
UCFC209-27	1-11/16																		UC209-27
UCFC209-28	1-3/4																		UC209-28
UCFC209																			UC209
UCFC210-29	1-13/16	50	165	138	97.6	10	16	12	14	28	110	4	53.5	42.6	51.6	19	M14	1/2	UC210-29	FC210	2.1
UCFC 210-30	1-7/8																		UC210-30
UCFC210-31	1-15/16																		UC210-31
UCFC210-32	2																		UC210-32
UCFC210																			UC210
UCFC211-32	2	55	185	150	106.1	13	19	12	15	31	125	4	59	46.4	55.6	22.2	M16	5/8	UC211-32	FC211	3.1
UCFC211-33	2-1/16																		UC211-33
UCFC211-34	2-1/8																		UC211-34
UCFC211-35	2-3/16																		UC211-35
UCFC211																			UC211
UCFC212-36	2-1/4	60	195	160	113.1	17	19	12	15	36	135	4	68	56.7	65.1	25.4	M16	5/8	UC212-36	FC212	3.2
UCFC 212-37	2-5/16																		UC212-37
UCFC212-38	2-3/8																		UC212-38
UCFC212-39	2-7/16																		UC212-39
UCFC212																			UC212
UCFC213-40	2-1/2	65	205	170	120.2	16	19	14	15	36	145	4	69.5	55.7	65.1	25.4	M16	5/8	UC213-40	FC213	3.75
UCFC213-41	2-9/16																		UC213-41
UCFC213																			UC213
UCFC214-42	2-5/8	70	215	177	125.1	17	19	14	18	40	150			61.4	74.6	30.2	M16	5/8	UC214-42	FC214	4.75
UCFC214-43	2-11/16																		UC214-43
UCFC214-44	2-3/4																		UC214-44
UCFC214																			UC214
UCFC215-45	2-13/16	75	220	184	130.1	18	19	16	18	40	160			62.5	77.8	33.3	M16	5/8	UC215-45	FC215	5
UCFC215-46	2-7/8																		UC215-46
UCFC215-47	2-15/16																		UC215-47
UCFC215-48	3																		UC215-48
UCFC215																			UC215
UCFC216-50	3-1/8	80	240	200	141.4	18	23	16	18	42	170			67.3	82.6	33.3	M20	3/4	UC216-50	FC216	6.1
UCFC216																			UC216
UCFC217-52	3-1/4	85	250	208	147.1	18	23	18	20	45	180			69.6	85.7	34.1	M20	3/4	UC217-52	FC217	7.1
UCFC217																			UC217
UCFC218-56	3-1/2	90	265	220	155.5	22	23	18	20	50	190			78.3	96	39.7	M20	3/4	UC218-56	FC218	8
UCFC218																			UC218

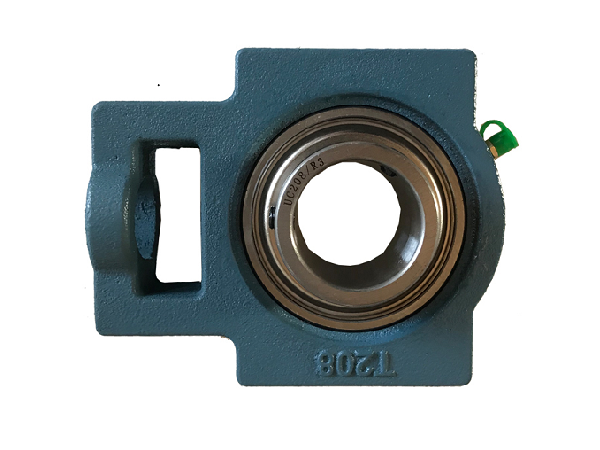

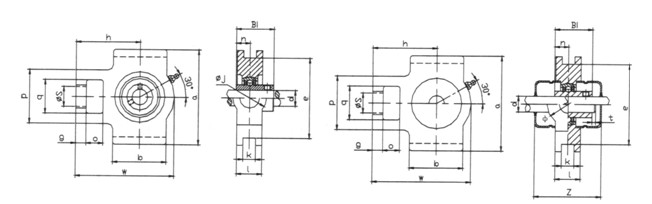

UCT200 Series

UCT200 Series Mounted Bearing Unit

UCT200 Series UCT200

Bearing Unit NO.	Shaft Dia d		Dimensions(mm)																	Bearing No.	Housing No.	Weight(kg)
	(in)	(mm)	o	g	p	q	s	b	k	e	a	w	j	l	h	t	z	Bi	n
UCT201-8	1/2	12	16	10	51	32	19	51	12	76	89	94	32	21	61	2	51	31	12.7	UC201-8	T204	0.56
UCT202-9	9/16	15																		UC202-9
UCT202-10	5/8	17																		UC202-10
UCT203-11	11/16	20																		UC203-11
UCT205-13	13/16	25	16	10	51	32	19	51	12	76	89	97	32	24	62	2	57	34.1	14.3	UC205-13	T205	0.63
UCT205-14	7/8																			UC205-14
UCT205-15	15/16																			UC205-15
UCT205-16	1																			UC205-16
UCT205																				UC205
UCT206-17	1-1/16	30	16	10	56	37	22	57	12	89	102	113	37	28	70	2	62	38.1	15.9	UC206-17	T206	0.95
UCT206-18	1-1/8																			UC206-18
UCT206-19	1-3/16																			UC206-19
UCT206-20	1-1/4																			UC206-20
UCT206																				UC206
UCT207-20	1-1/4	35	16	13	64	37	22	64	12	89	102	129	37	30	78	3	72	42.9	17.5	UC207-20	T207	1.09
UCT207-21	1-5/16																			UC207-21
UCT207-22	1-3/8																			UC207-22
UCT207-23	1-7/16																			UC207-23
UCT207																				UC207
UCT208-24	1-1/2	40	19	16	83	49	29	83	16	102	114	144	49	33	88	3	82	49.2	19	UC208-24	T208	1.72
UCT208-25	1-9/16																			UC208-25
UCT208																				UC208
UCT209-26	1-5/8	45	19	16	83	49	29	83	16	102	117	144	49	35	87	3	82	49.2	19	UC209-26	T209	1.75
UCT209-27	1-11/16																			UC209-27
UCT209-28	1-3/4																			UC209-28
UCT209																				UC209
UCT210-29	1-13/16	50	19	16	83	49	29	86	16	102	117	149	49	37	90	3	87	51.6	19	UC210-29	T210	1.75
UCT210-30	1-7/8																			UC210-30
UCT210-31	1-15/16																			UC210-31
UCT210-32	2																			UC210-32
UCT210																				UC210
UCT211-32	2	55	25	19	102	64	35	95	22	130	146	171	64	38	106	4	92	55.6	22.2	UC211-32	T211	2.8
UCT211-33	2-1/16																			UC211-33
UCT211-34	2-1/8																			UC211-34
UCT211-35	2-3/16																			UC211-35
UCT211																				UC211
UCT212-36	2-1/4	60	32	19	102	64	35	102	22	130	146	194	64	42	119	4	102	65.1	25.4	UC212-36	T212	3.4
UCT212-37	2-5/16																			UC212-37
UCT212-38	2-3/8																			UC212-38
UCT212-39	2-7/16																			UC212-39
UCT212																				UC212
UCT213-40	2-1/2	65	32	21	111	70	41	121	26	151	167	224	70	44	137	4	107	65.1	25.4	UC213-40	T213	5
UCT213-41	2-9/16																			UC213-41
UCT213																				UC213
UCT214-42	2-5/8	70	32	21	111	70	41	121	26	151	167	224	70	46	137			74.6	30.2	UC214-42	T214	4.7
UCT214-43	2-11/16																			UC214-43
UCT214-44	2-3/4																			UC214-44
UCT214																				UC214
UCT215-45	2-13/16	75	32	21	111	70	41	121	26	151	167	232	70	48	140			77.8	33.3	UC215-45	T215	5.1
UCT215-46	2-7/8																			UC215-46
UCT215-47	2-15/16																			UC215-47
UCT215-48	3																			UC215-48
UCT215																				UC215
UCT216-50	3-1/8	80	32	21	111	70	41	121	26	165	184	235	70	51	140			82.6	33.3	UC216-50	T216	5.5
UCT216																				UC216
UCT217-52	3-1/4	85	38	29	124	73	48	157	30	173	198	260	73	54	162			85.7	34.1	UC217-52	T217	7.4
UCT217																				UC217
UCT218-56	3-1/2	90	40	30	130	80	48	140	30	190	215	275	80	55	170			96	39.7	UC218-56	T218	10.2
UCT218																				UC218

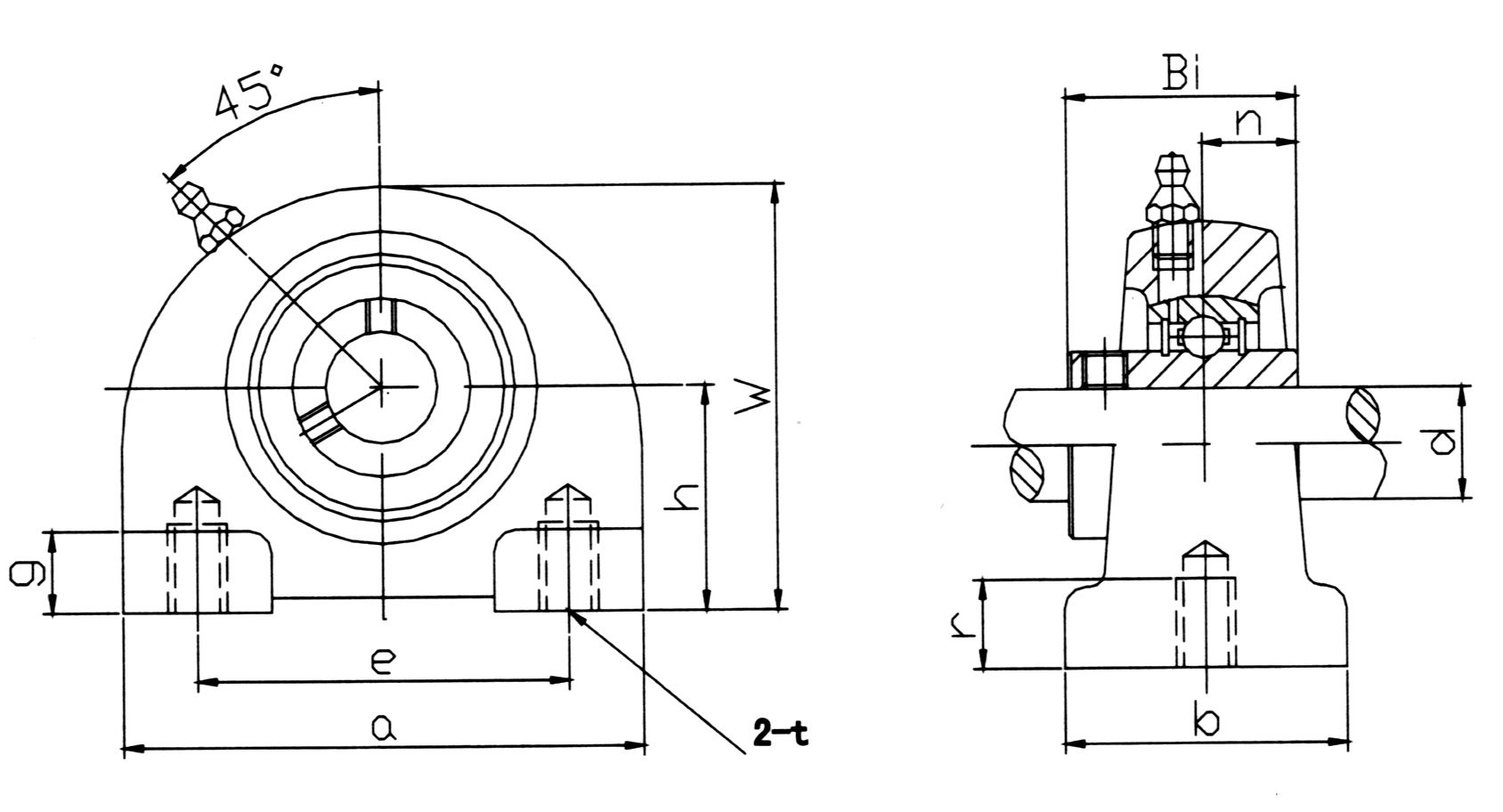

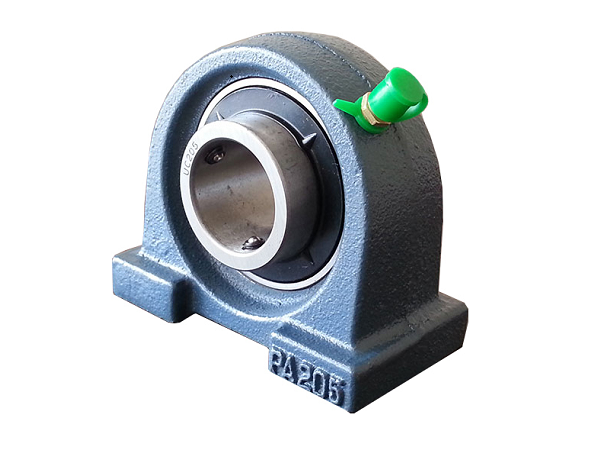

UCPA200 Series

UCPA200 Series Mounted Bearing Unit

UCPA200 Series UCPA200

Bearing Unit No.

Shaft Dia d

Dimensions(mm)

Bolt Used

Bearing No.

Housing No.

Housing

Wt (kg)

(mm)

(in)

(mm)

UCPA201-8

1/2

30.2

M10

12.7

M10x1.5

UC201-8

PA204

0.42

UCPA202-9

9/16

UC202-9

UCPA202-10

5/8

UC202-10

UCPA203-11

11/16

UC203-11

UCPA204-12

3/4

UC204-12

UCPA201

UC201

UCPA202

UC202

UCPA203

UC203

UCPA204

UC204

UCPA205-13

13/16

36.5

M10

34.1

14.3

M10x1.5

UC205-13

PA205

0.61

UCPA205-14

7/8

UC205-14

UCPA205-15

15/16

UC205-15

UCPA205-16

UC205-16

UCPA205

UC205

UCPA206-17

1-1/16

42.9

M14

38.1

15.9

M14x2

UC206-17

PA206

0.93

UCPA206-18

1-1/8

UC206-18

UCPA206-19

1-3/16

UC206-19

UCPA206-20

1-1/4

UC206-20

UCPA206

UC206

UCPA207-20

1-1/4

47.6

110

M14

42.9

17.5

M14x2

UC207-20

PA207

1.21

UCPA207-21

1-5/16

UC207-21

UCPA207-22

1-3/8

UC207-22

UCPA207-23

1-7/16

UC207-23

UCPA207

UC207

UCPA208-24

1-1/2

49.2

116

M14

100

49.2

M14x2

UC208-24

PA208

1.47

UCPA208-25

1-9/16

UC208-25

UCPA208

UC208

UCPA209-26

1-5/8

54.2

120

M14

108

49.2

M14x2

UC209-26

PA209

1.5

UCPA209-27

1-11/16

UC209-27

UCPA209-28

1-3/4

UC209-28

UCPA209

UC209

UCPA210-29

1-13/16

57.2

130

M16

116

51.6

M16x2

UC210-29

PA210

UCPA210-30

1-7/8

UC210-30

UCPA210-31

1-15/16

UC210-31

UCPA210-32

UC210-32

UCPA210

UC210

UCPA211-32

63.5

140

104

M16

125

55.6

22.2

M16x2

UC211-32

PA211

2.5

UCPA211-33

2-1/16

UC211-33

UCPA211-34

2-1/8

UC211-34

UCPA211-35

2-3/16

UC211-35

UCPA211

UC211

UCPA212-36

2-1/4

69.9

150

114

M16

138

65.1

25.4

M16x2

UC212-36

PA212

2.7

UCPA212-37

2-5/16

UC212-37

UCPA212-38

2-3/8

UC212-38

UCPA212-39

2-7/16

UC212-39

UCPA212

UC212

UCPA213-40

2-1/2

76.2

160

124

M16

150

65.1

25.4

M16x2

UC213-40

PA213

4.37

UCPA213-41

2-9/16

UC213-41

UCPA213

UC213

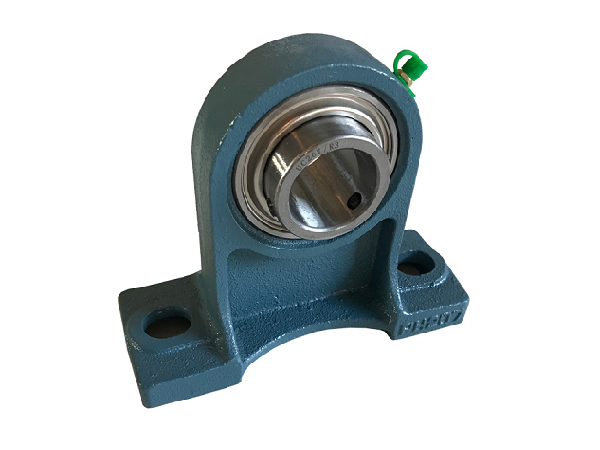

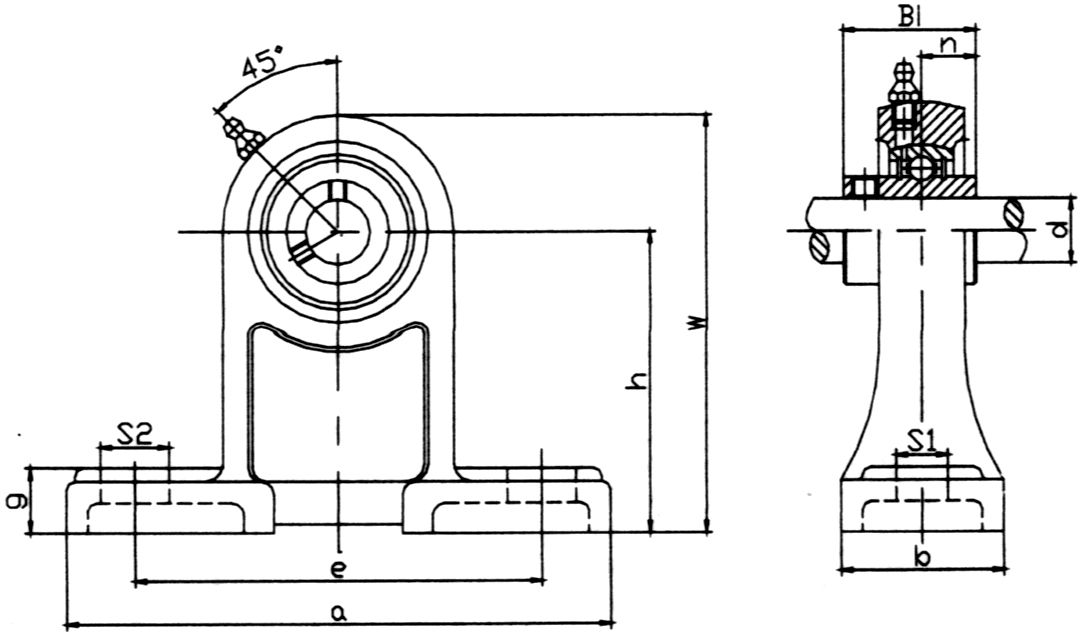

UCPH200 Series

UCPH200 Series Mounted Bearing Unit

UCPH200 Series UCPH200

Bearing Unit No.	Shaft Dia d		Dimensions(mm)										Bolt Used		Bearing No.	Housing No.	Housing Wt(kg)
			h	a	e	b	S2	S1	g	w	Bi	n	(mm)	(in)
	(in)	(mm)
UCPH201-8	1/2		70	127	95	40	19	13	15	101	31	12.7	M10	3/8	UC201-8	PH204	0.75
UCPH202-9	9/16														UC202-9
UCPH202-10	5/8														UC202-10
UCPH203-11	11/16														UC203-11
UCPH204-12	3/4														UC204-12
UCPH201		12													UC201
UCPH202		15													UC202
UCPH203		17													UC203
UCPH204		20													UC204
UCPH205-13	13/16	25	80	140	105	50	19	13	16	114	34.1	14.3	M10	3/8	UC205-13	PH205	1
UCPH205-14	7/8														UC205-14
UCPH205-15	15/16														UC205-15
UCPH205-16	1														UC205-16
UCPH205															UC205
UCPH206-17	1-1/16	30	90	165	121	50	21	17	18	130	38.1	15.9	M14	1/2	UC206-17	PH206	1.42
UCPH206-18	1-1/8														UC206-18
UCPH206-19	1-3/16														UC206-19
UCPH206-20	1-1/4														UC206-20
UCPH206															UC206
UCPH207-20	1-1/4	35	95	167	127	60	21	17	19	140	42.9	17.5	M14	1/2	UC207-20	PH207	1.55
UCPH207-21	1-5/16														UC207-21
UCPH207-22	1-3/8														UC207-22
UCPH207-23	1-7/16														UC207-23
UCPH207															UC207
UCPH208-24	1-1/2	40	100	184	137	70	25	17	19	149	49.2	19	M14	1/2	UC208-24	PH208	2.15
UCPH208-25	1-9/16														UC208-25
UCPH208															UC208
UCPH209-26	1-5/8	45	105	190	146	70	25	17	20	157	49.2	19	M14	1/2	UC209-26	PH209	2.31
UCPH209-27	1-11/16														UC209-27
UCPH209-28	1-3/4														UC209-28
UCPH209															UC209
UCPH210-29	1-13/16	50	110	206	159	70	25	20	22	165	51.6	19	M16	5/8	UC210-29	PH210	2.8
UCPH210-30	1-7/8														UC210-30
UCPH210-31	1-15/16														UC210-31
UCPH210-32	2														UC210-32
UCPH210															UC210
UCPH211-32	2	55	120	219	171	75	22	19	22	181	55.6	22.2	M16	5/8	UC211-32	PH211	4.4
UCPH211-33	2-1/16														UC211-33
UCPH211-34	2-1/8														UC211-34
UCPH211-35	2-3/16														UC211-35
UCPH211															UC211
UCPH212-36	2-1/4	60	130	235	184	85	23	19	25	197	65.1	25.4	M16	5/8	UC212-36	PH212	4.8
UCPH212-37	2-5/16														UC212-37
UCPH212-38	2-3/8														UC212-38
UCPH212-39	2-7/16														UC212-39
UCPH212															UC212
UCPH213-40	2-1/2	65	140	262	203	95	28	23	27	212	65.1	25.4	M20	3/4	UC213-40	PH213	5.6
UCPH213-41	2-9/16														UC213-41
UCPH213															UC213
UCPH214-42	2-5/8	70	150	268	210	105	28	23	28	225	74.6	30.2	M20	3/4	UC214-42	PH214	6.2
UCPH214-43	2-11/16														UC214-43
UCPH214-44	2-3/4														UC214-44
UCPH214															UC214
UCPH215-45	2-13/16	75	160	275	217	115	28	23	29	238	77.8	33.3	M20	3/4	UC215-45	PH215	7.4
UCPH215-46	2-7/8														UC215-46
UCPH215-47	2-15/16														UC215-47
UCPH215-48	3														UC215-48
UCPH215															UC215
UCPH216-50	3-1/8	80	170	290	232	125	28	23	30	253	82.6	33.3	M20	3/4	UC216-50	PH216	8
UCPH216															UC216

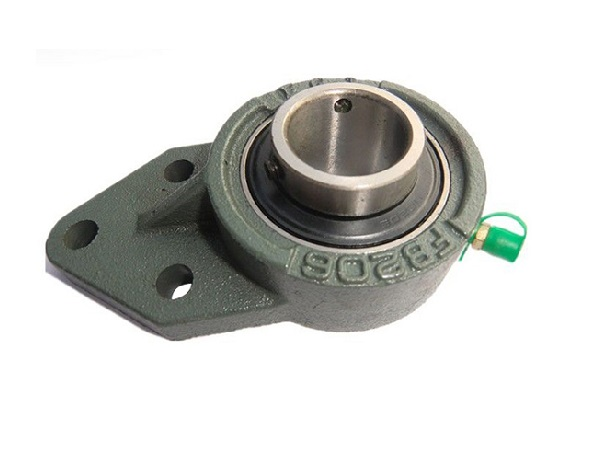

UCFB200 Series

UCFB200 Series Mounted Bearing Unit

UCFB200

Bearing Unit NO.	Shaft Dia d		Dimensions(mm)													Bolt Used		Bearing No.	Housing No.	Weight (kg)
	(in)	(mm)	a	h	e	j	i	g	l	s	b	f	z	Bi	n	mm	in
UCFB201-8	1/2		108	42.9	38.1	22	15.9	8	25.4	10	63.5	60.3	34.1	31	12.7	M8	5/16	UC201-8	FB204	0.38
UCFB202-9	9/16																	UC202-9
UCFB202-10	5/8																	UC202-10
UCFB203-11	11/16																	UC203-11
UCFB204-12	3/4																	UC204-12
UCFB201		12																UC201
UCFB202		15																UC202
UCFB203		17																UC203
UCFB204		20																UC204
UCFB205-13	13/16	25	121	46	41.3	28.5	16.7	9.5	28.5	10	70	63.5	36.5	34	14.3	M8	5/16	UC205-13	FB205	0.49
UCFB205-14	7/8																	UC205-14
UCFB205-15	15/16																	UC205-15
UCFB205-16	1																	UC205-16
UCFB205																		UC205
UCFB206-17	1-1/16	30	137	52.4	47.6	31.7	18.6	9.5	32	10	83	70	40.9	38.1	15.9	M8	5/16	UC206-17	FB206	0.61
UCFB206-18	1-1/8																	UC206-18
UCFB206-19	1-3/16																	UC206-19
UCFB206-20	1-1/4																	UC206-20
UCFB206																		UC206
UCFB207-20	1-1/4	35	156	60.3	50.8	31.7	21	12.7	36.5	13	95	83	46.4	42.9	17.5	M10	3/8	UC207-20	FB207	0.75
UCFB207-21	1-5/16																	UC207-21
UCFB207-22	1-3/8																	UC207-22
UCFB207-23	1-7/16																	UC207-23
UCFB207																		UC207
UCFB208-24	1-1/2	40	164	60.3	50	41.3	21	15.9	35.7	12	100	78	51.2	49.2	19	M10	3/8	UC208-24	FB208	0.8
UCFB208-25	1-9/16																	UC208-25
UCFB208																		UC208
UCFB209-26	1-5/8	45	174	65	54	42.9	21.8	18.3	38	12	106	80	51.2	49.2	19	M10	3/8	UC209-26	FB209	1.5
UCFB209-27	1-11/16																	UC209-27
UCFB209-28	1-3/4																	UC209-28
UCFB209																		UC209
UCFB210-29	1-13/16	50	190	74.6	70	41.3	21.8	12.7	38	13	118	102	53.6	51.6	19	M10	3/8	UC210-29	FB210	1.8
UCFB210-30	1-7/8																	UC210-30
UCFB210-31	1-15/16																	UC210-31
UCFB210-32	2																	UC210-32
UCFB210																		UC210

YRT Rotary Table Bearings

Mounted Bearing Unit

Features:

Product Parameter

UCP200 Series Mounted Bearing Unit

UCP300 Series Mounted Bearing Unit

UCF200 Series Mounted Bearing Unit

UCF300 Series Mounted Bearing Unit

UCFL200 Series Mounted Bearing Unit

UCFL300 Series Mounted Bearing Unit

UCFC200 Series Mounted Bearing Unit

UCT200 Series Mounted Bearing Unit

UCPA200 Series Mounted Bearing Unit

UCPH200 Series Mounted Bearing Unit

UCFB200 Series Mounted Bearing Unit

SUYU MACHINERY

Products

Application

News

inquiry

YRT Rotary Table Bearings

Mounted Bearing Unit

Features:

Product Parameter

UCP200 Series Mounted Bearing Unit

Share

SUYU MACHINERY

Products

Application

News

inquiry
