Insert bearing

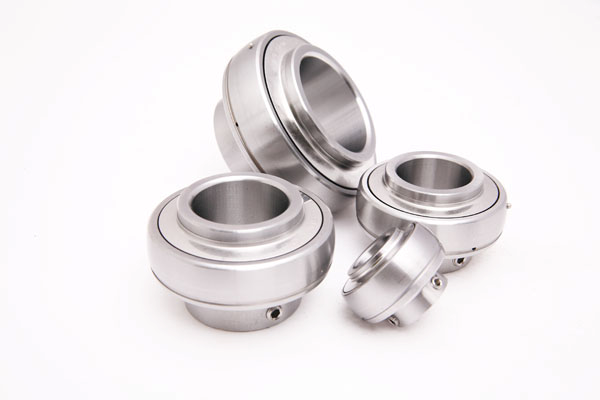

Insert bearing

Features:

Insert bearing is actually a variant of the deep groove ball bearing, but have a convex outer ring and in most cases an extended inner ring with a specific locking device, enabling quick and easy mounting onto the shaft.

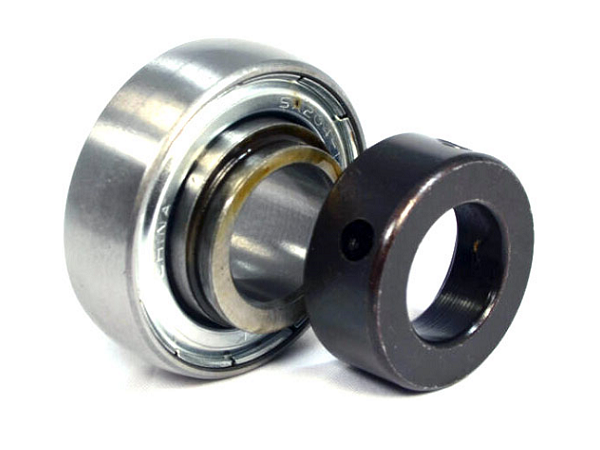

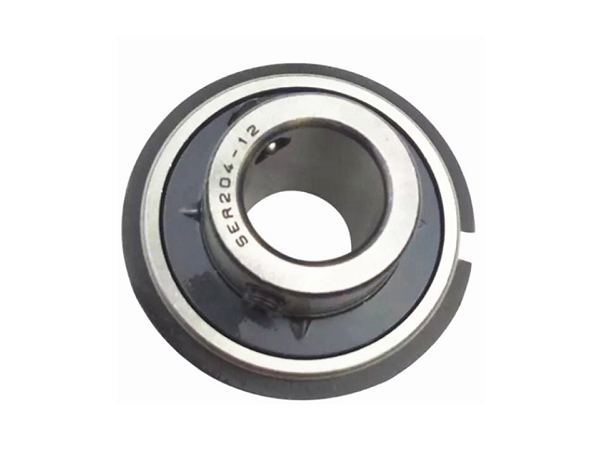

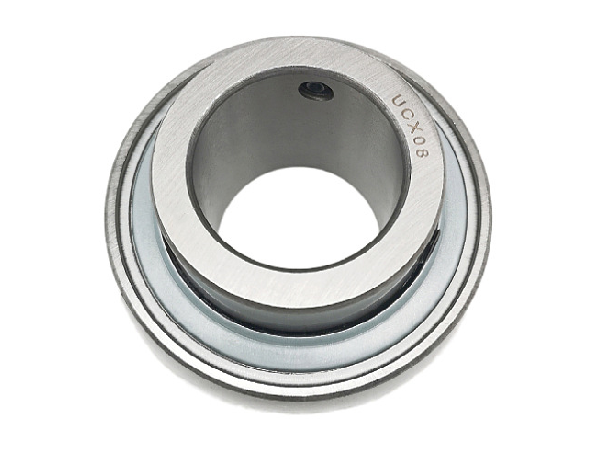

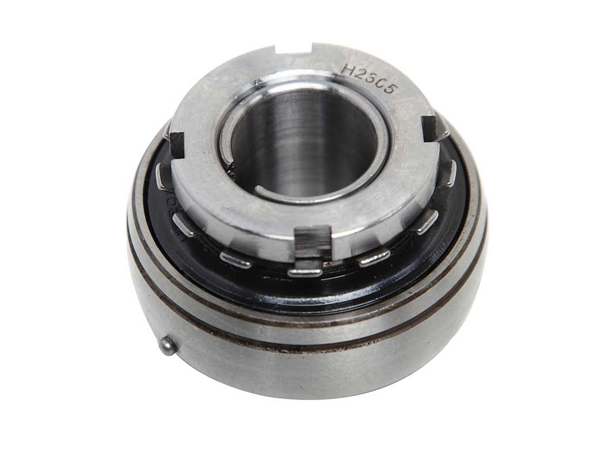

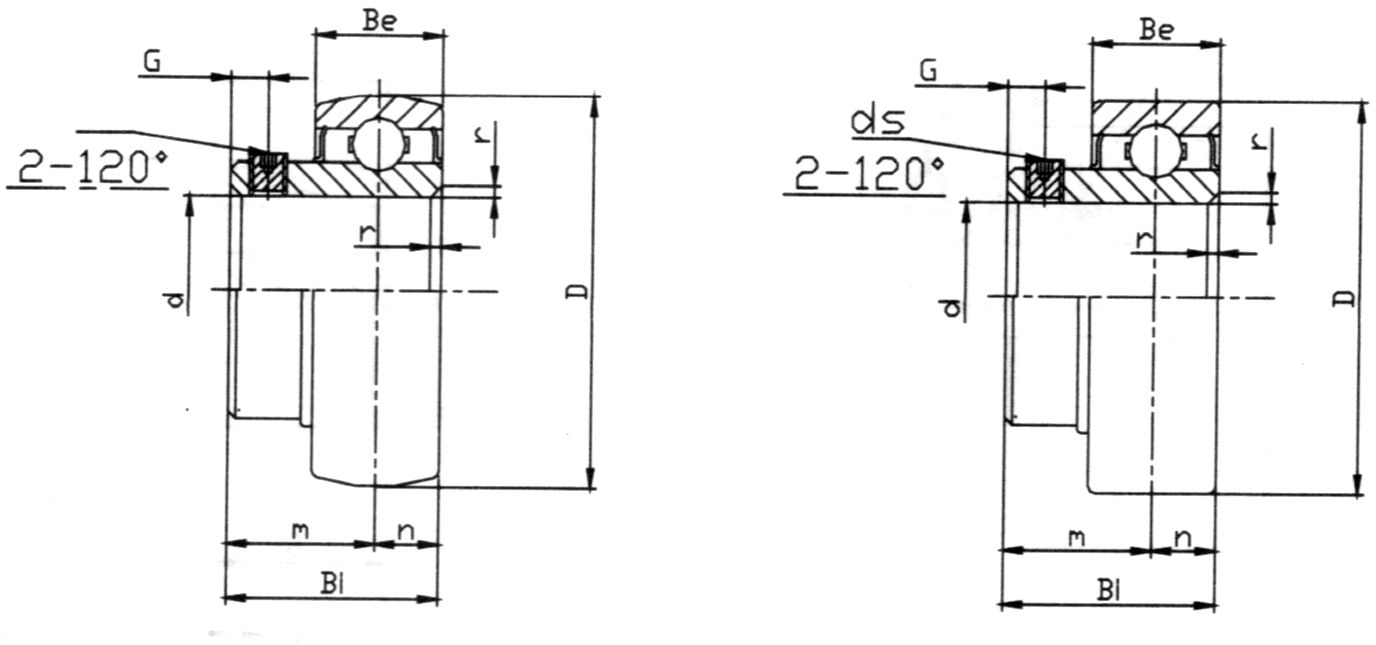

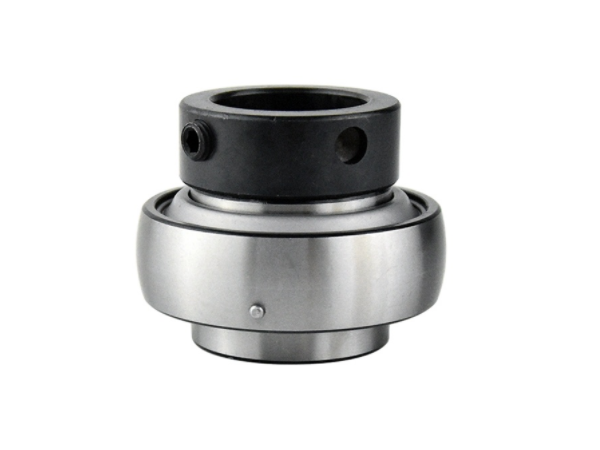

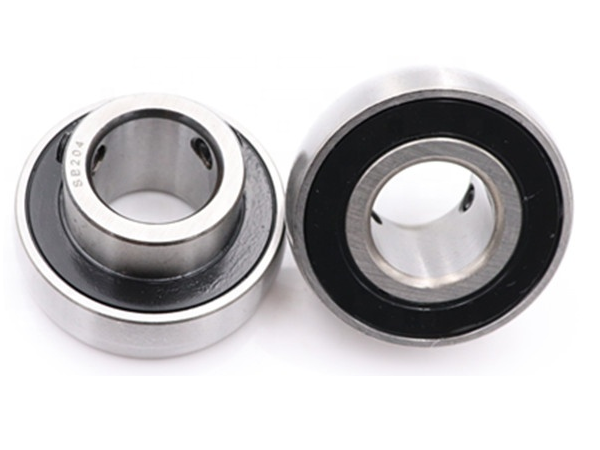

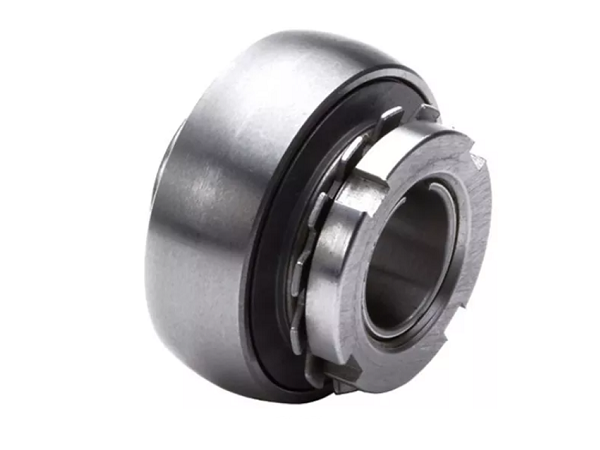

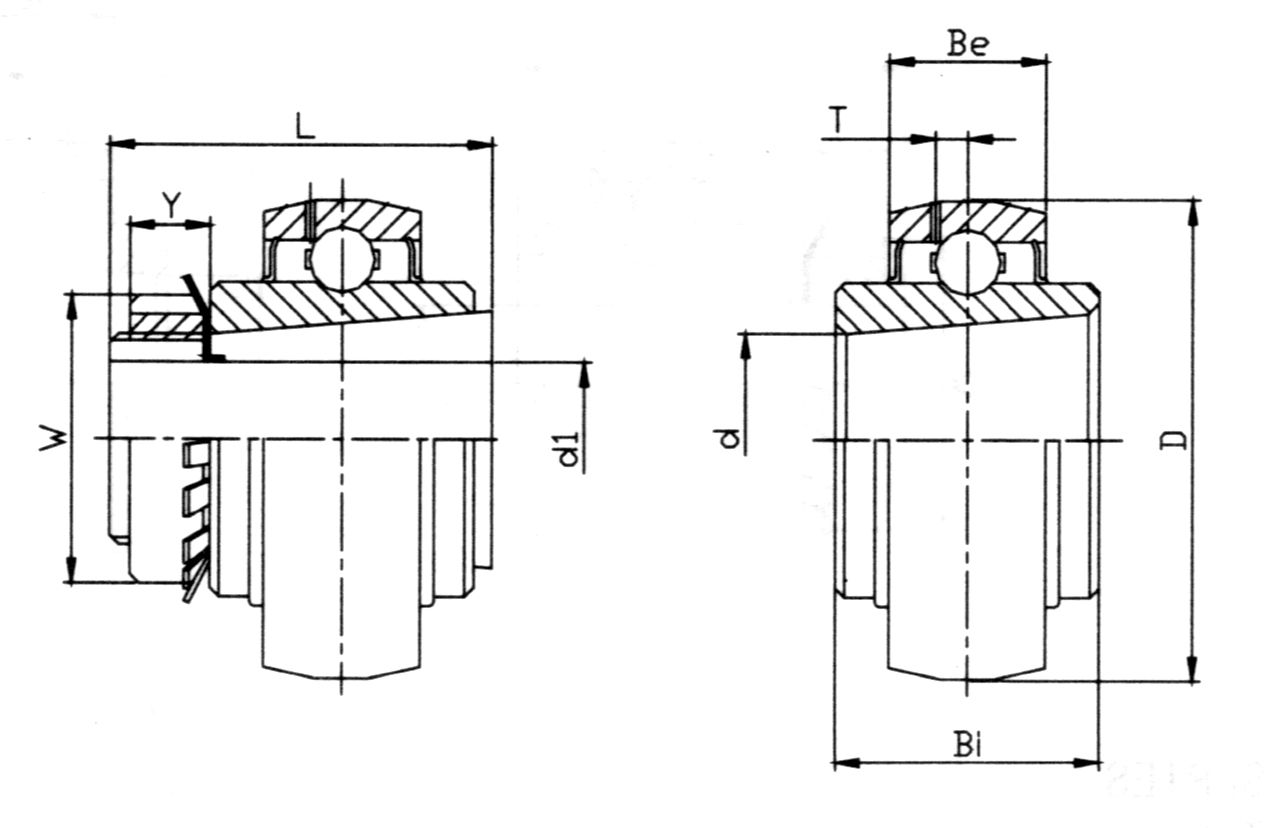

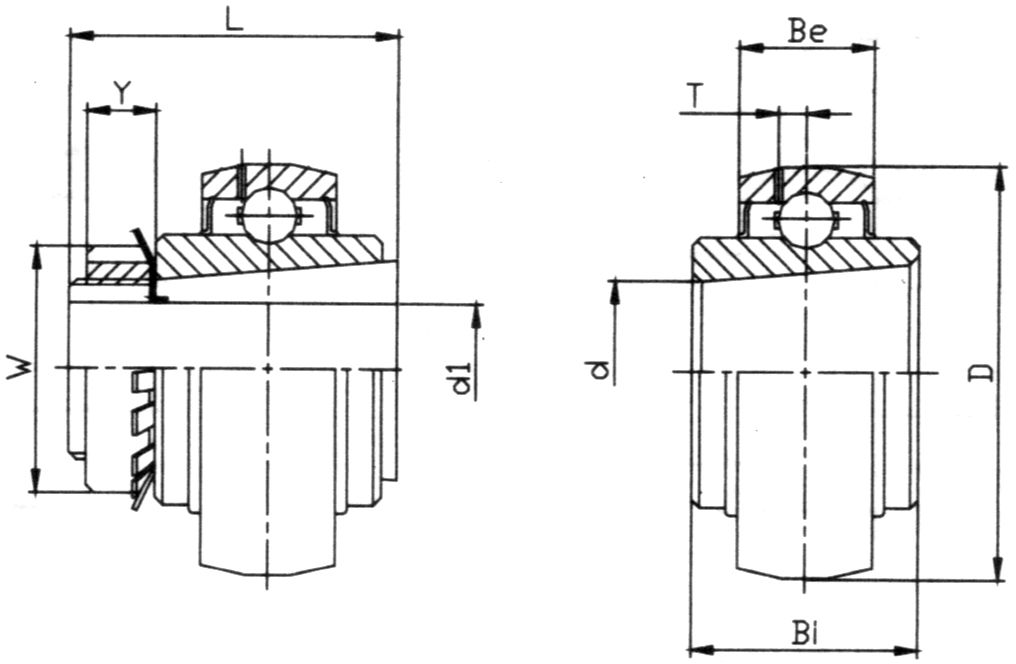

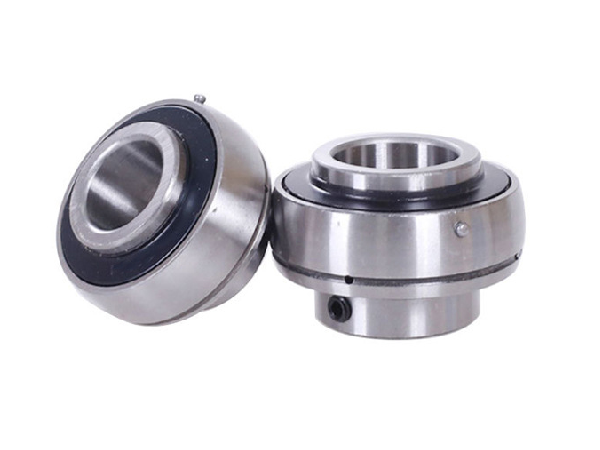

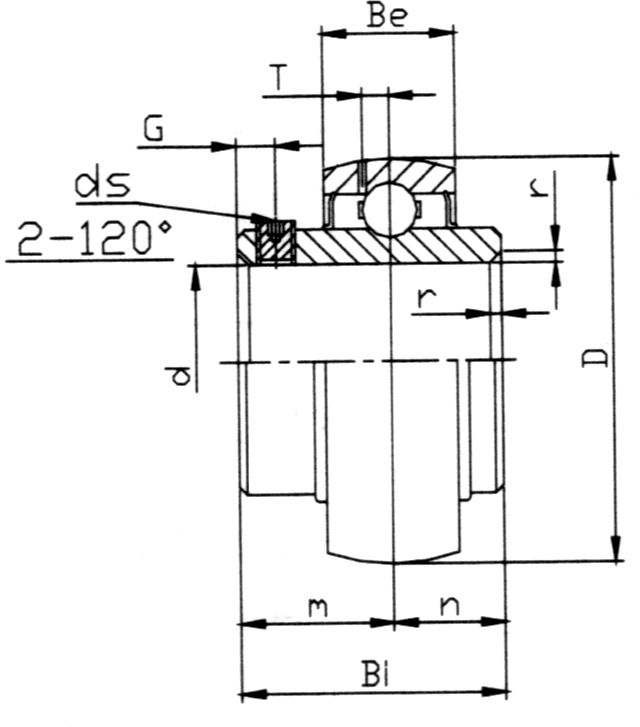

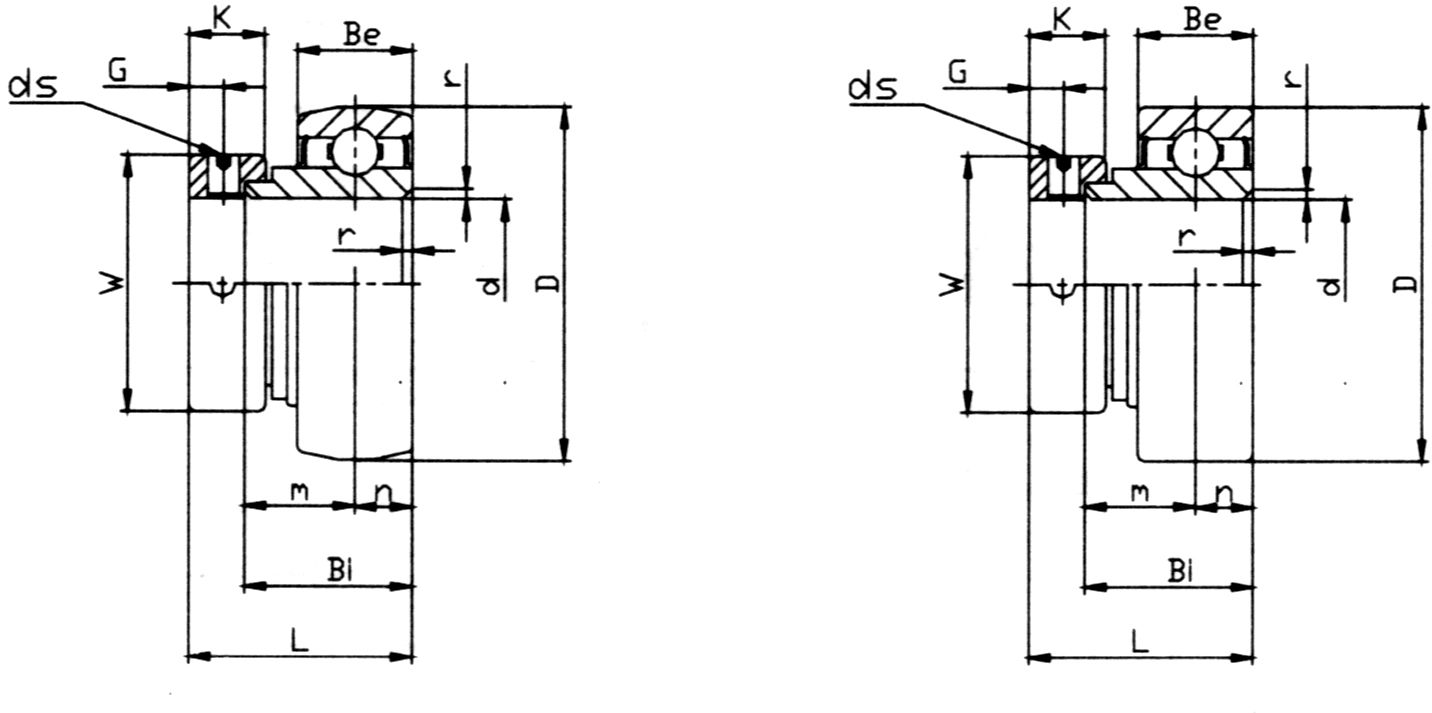

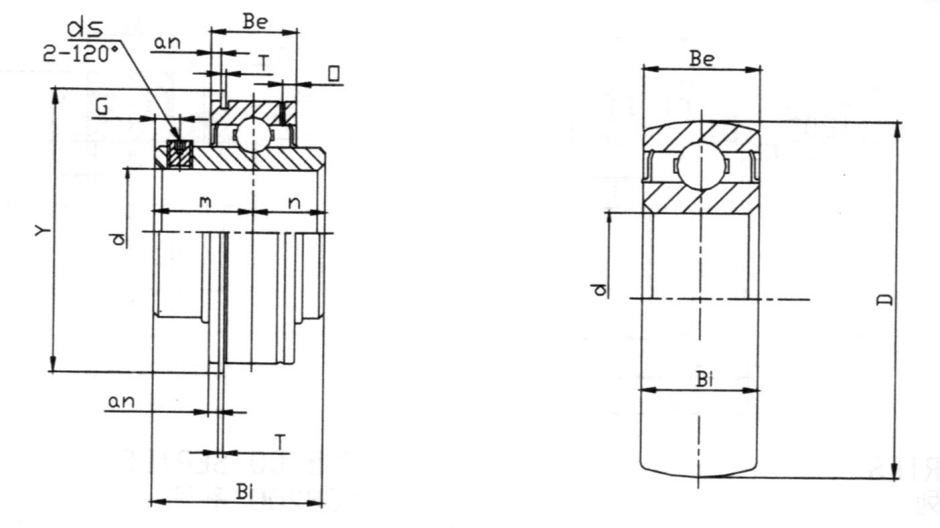

We supply complete range of inert bearings, UC200 series, UC300 series, UCX00 series, HC200 series, UK200+H series, UK300+H series, UKX00+H series, SA200 series (CSA200 series), SB200 series (CSB200 series), SER200 series (SC200 series).

Send E-mail Request Quote

Product Parameter

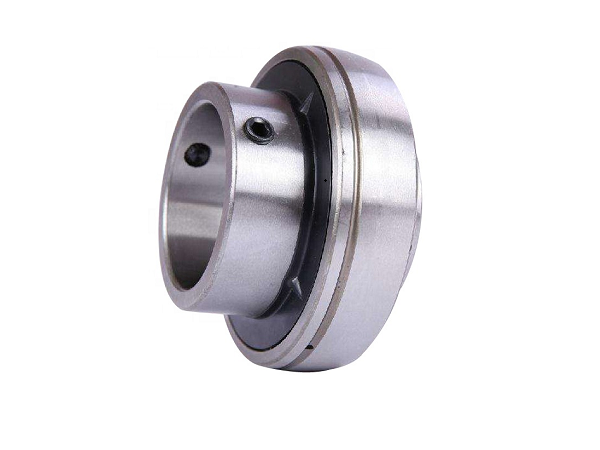

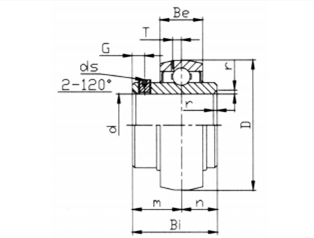

UC200 Series Insert Bearing

UC200 SeriesUC200

Housing No. Shaft Dia d Dimensions(mm) Basic Load rating
(kg)		 Static Load rating
(kg)		 Housing

Wt (kg)

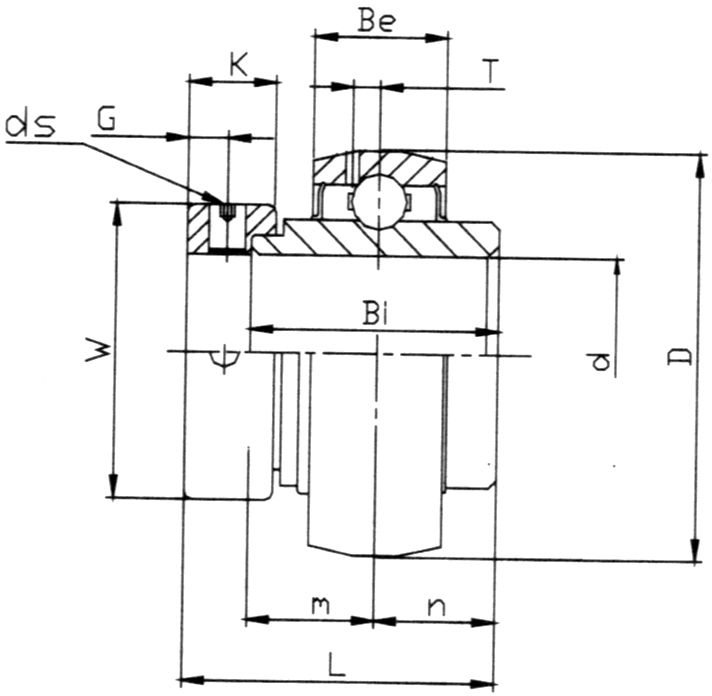

D Bi Be r n m G ds T
(in) (mm)
UCW201-8
202-10
203-11
UCW201
202
203		 1/2
5/8
11/16		 12
15
17		 40 26 15 1 10 16 4 10-32UHF
M5X0.8		 4 900 580 0.19
0.18
0.17
0.15
0.20
0.18
UC201-8
202-10
203-11
204-12
UC201
202
203
204		 1/2
5/8
11/16
3/4		 12
15
17
20		 47 31 17 1 12.7 18.3 4.5 1/4-28
M6X0.75		 3.7 1000 630 0.20
0.19
0.18
0.16
0.21
0.19
0.18
0.19
UC205-14
205-15
205-16
UC205		 7/8
15/16
1		 25 52 34.1 17 1.5 14.3 19.8 5 1/4-28
M6X0.75		 3.9 1100 710 0.22
0.20
0.19
0.19
UC206-17
206-18
206-19
206-20
UC206		 1-1/16
1-1/8
1-3/16
1-1/4		 30 62 38.1 19 1.5 15.9 22.2 5 5/16-24
M8X1		 5 1540 1020 0.36
0.34
0.32
0.31
0.31
UC207-20
207-21
207-22
207-23
UC207		 1-1/4
1-5/16
1-3/8
1-7/16		 35 72 42.9 20 2 17.5 25.4 6 5/16-24
M8X1		 5.7 2030 1400 0.52
0.50
0.48
0.46
0.46
UC208-24
208-25
UC208		 1-1/2
1-9/16		 40 80 49.2 21 2 19 30.2 8 5/16-24
M8X1		 6.2 2300 1600 0.68
0.64
0.63
UC209-26
209-27
209-28
UC209		 1-5/8
1-11/16
1-3/4		 45 85 49.2 22 2 19 30.2 8 5/16-24
M8X1		 6.4 2560 1810 0.78
0.74
0.70
0.68
UC210-30
210-31
UC210		 1-7/8
1-15/16		 50 90 51.6 24 2 19 32.6 10 3/8-24
M10X1.25		 6.5 2750 2020 0.85
0.80
0.78
UC211-32
211-34
211-35
UC211		 2
2-1/8
2-3/16		 55 100 55.6 25 2.5 22.2 33.4 10 3/8-24
M10X1.25		 7 3400 2550 1.22
1.10
1.05
1.07
UC212-36
212-38
212-39
UC212		 2-1/4
2-3/8
2-7/16		 60 110 65.1 27 2.5 25.4 39.7 10 3/8-24
M10X1.25		 7.6 4100 3150 1.65
1.49
1.42
1.52
UC213-40
UC213		 2-1/2 65 120 65.1 28 2.5 25.4 39.7 10 3/8-24
M10X1.25		 8.9 4480 3470 1.88
1.80
UC214-44
UC214		 2-3/4 70 125 74.6 30 2.5 30.2 44.4 12 7/16-20
M12X1.5		 8.9 4870 3810 2.07
2.06
UC215-47
215-48
UC215		 2-15/16
3		 75 130 77.8 32 2.5 33.3 44.5 12 7/16-20
M12X1.5		 8.9 5200 4200 2.21
2.11
2.19
UC216-50
UC216		 3-1/8 80 140 82.6 33 3 33.3 49.3 14 7/16-20
M12X1.5		 9.6 5700 4550 2.90
2.82
UC217-52
UC217		 3-1/4 85 150 85.7 35 3 34.1 51.6 14 7/16-20
M12X1.5		 10 6600 5320 3.56
4.86
UC218-56
UC218		 3-1/2 90 160 96 37 3 39.7 56.3 15 7/16-20
M12X1.5		 11 7550 6170 4.62
4.53
