Full Complement Roller Bearings

Cageless, full-complement cylindrical roller bearings have the maximum possible number of rollers and can sustain much heavier loads than cylindrical roller bearings of the same size with cages. On the other hand, high-speed capability is inferior to the bearings with cages.

The open-type single- and double-row bearings are mostly used in general industrial applications at low speed and under heavy load, and the shielded-type double-row bearings are often used in crane sheaves.

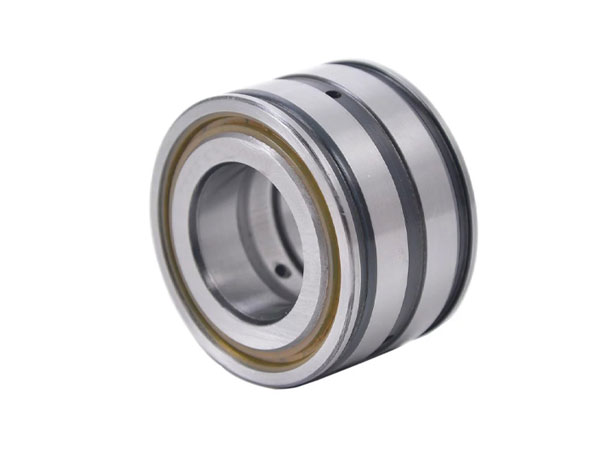

Full Complement Cylindrical Roller Bearings

Full Complement Cylindrical Roller Bearings

Full Complement Cylindrical Roller Bearings SL04 Series

Full Complement Cylindrical Roller Bearings SL04 Series

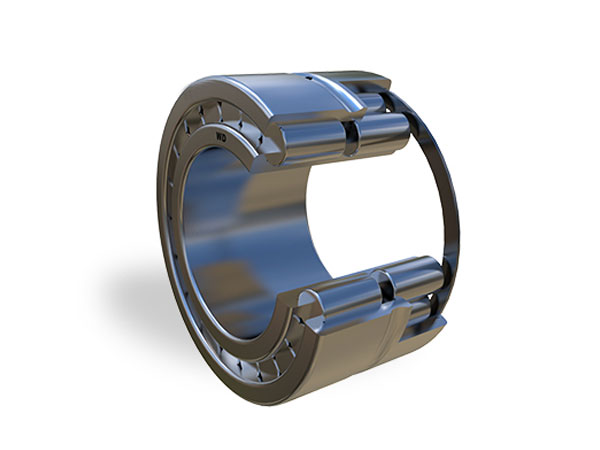

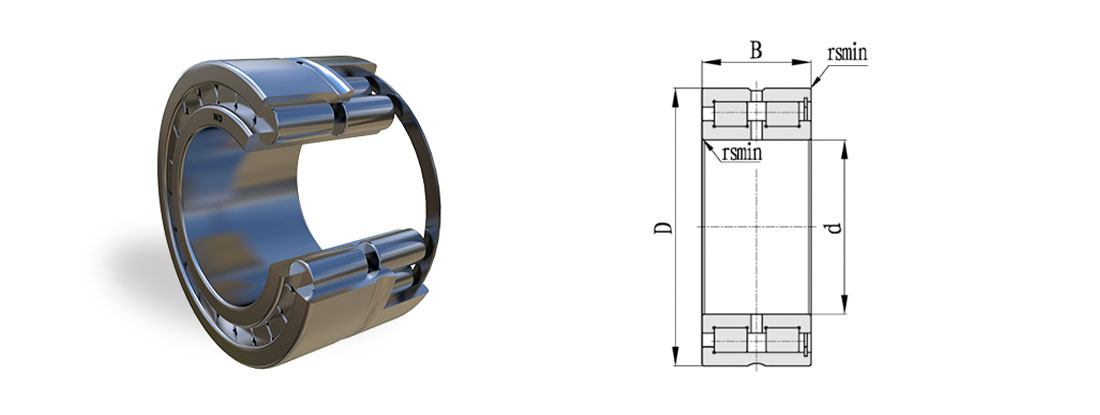

Full Complement Cylindrical Roller Bearings SL1850 Series

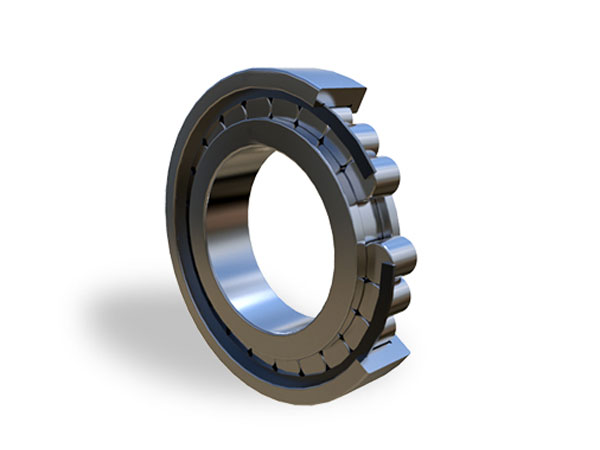

Full Complement Cylindrical Roller Bearing SL18 Series

Send E-mail Request Quote

Product Parameter

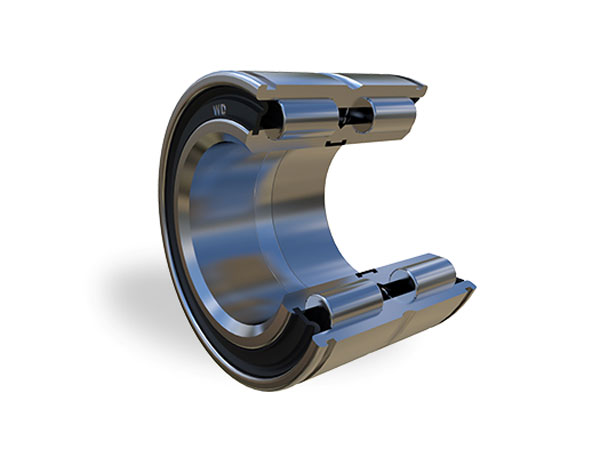

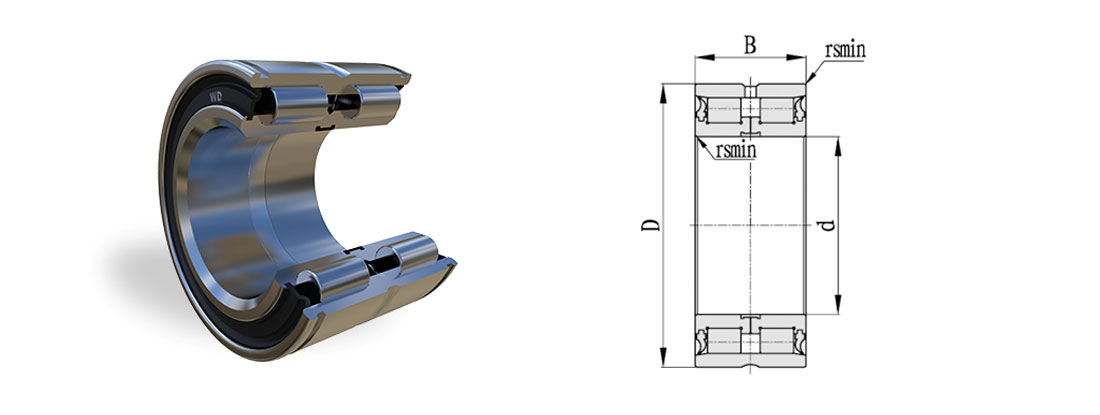

Full Complement Cylindrical Roller Bearings SL04 Series

Full Complement Cylindrical Roller Bearings SL04 Series

Full Complement Cylindrical Roller Bearings SL04 Series always sealed on both sides and filled with grease. The two-piece inner ring has three integral flanges and is fixed together by a retaining ring. The outer ring has an integral central flange. This kind of bearings can be used to locate a shaft axially in both directions. The outer rings has two snap groove and is one millimeter narrower than inner ring.

Type Dimensions Rated load(KN) Limiting Speed Mass SKF
(mm) (r/min) (kg)
d D B C Cr Cor
SL045004PPX 20 42 30 29 41.5 50 8500 0.2 NNF5004
SL045005PPX 25 47 30 29 44.6 62 7500 0.23 NNF5005
SL045006PPX 30 55 34 33 52.8 75 6500 0.35 NNF5006
SL045007PPX 35 62 36 35 66 91.5 5500 0.45 NNF5007
SL045008PPX 40 68 38 37 82 113 5000 0.56 NNF5008
SL045009PPX 45 75 40 39 95 141 4500 0.68 NNF5009
SL045010PPX 50 80 40 39 103 154 4200 0.76 NNF5010
SL045011PPX 55 90 46 45 119 180 3800 1.18 NNF5011
SL045012PPX 60 95 46 45 123 195 3500 1.26 NNF5012
SL045013PPX 65 100 46 45 128 209 3300 1.33 NNF5013
SL045014PPX 70 110 54 53 172 270 3000 1.85 NNF5014
SL045015PPX 75 115 54 53 198 305 2800 2 NNF5015
SL045016PPX 80 125 60 59 206 335 2600 2.71 NNF5016
SL045017PPX 85 130 60 59 215 360 2500 2.83 NNF5017
SL045018PPX 90 140 67 66 310 520 2300 3.88 NNF5018
SL045019PPX 95 145 67 66 315 540 2200 3.95 NNF5019
SL045020PPX 100 150 67 66 330 550 2200 4.05 NNF5020
SL045022PPX 110 170 80 79 395 680 1900 6.45 NNF5022
SL045024PPX 120 180 80 79 410 740 1800 6.9 NNF5024
SL045026PPX 130 200 95 94 550 980 1600 10.5 NNF5026
SL045028PPX 140 210 95 94 630 1120 1500 11.1 NNF5028
SL045030PPX 150 225 100 99 710 1270 1400 13.5 NNF5030
SL045032PPX 160 240 109 108 740 1370 1300 16.5 NNF5032
SL045034PPX 170 260 122 121 960 1760 1300 22.5 NNF5034
SL045036PPX 180 280 136 135 1140 2140 1200 30 NNF5036
SL045038PPX 190 290 136 135 1170 2230 1100 31.5 NNF5038
SL045040PPX 200 310 150 149 1370 2650 1000 40.5 NNF5040
SL045044PPX 220 340 160 159 1580 3100 950 52.5 NNF5044
SL045048PPX 240 360 160 159 1650 3350 900 57.5 NNF5048
SL045052PPX 260 400 190 189 2380 4700 800 84.5 NNF5052
SL045056PPX 280 420 190 189 2600 5200 800 90 NNF5056
SL045060PPX 300 460 218 216 3000 5900 700 126 NNF5060
SL04130PPX 130 190 80 79 430  790 800 7.5 319426 DA-2LS
SL04140PPX 140 200  80 79 445 840  750 8 319428 DA-2LS
SL04150PPX 150 210 80 79 465 920 700 8.4 319430 DA-2LS
SL04160PPX 160 220 80 79 480 970 700 8.8 319432 DA-2LS
SL04170PPX 170 230 80 79 490 1030 650 9.3 319434 DA-2LS
SL04180PPX 180 240 80 79 500 1080 600 9.8 319436 DA-2LS
SL04190PPX 190 260  80 79 520 1160 550 12.7 319438 DA-2LS
SL04200PPX 200 270 80 79  540  1210 550 13.2 319440 DA-2LS
