Combined Bearings

Combined Bearings are particularly suitable for truck lift columns and all other convoying systems which require profiles. They can afford load from both axial and radial direction at the same time. With the optimzed structure, the mount space can be saved, and the usage is also simple that just to weld the pivot in the mount plate, and it is not necessary to dismantle the whole set. The radial bearings are particularly suitable for automation and shift systems, which do not require heavy axial loads, and they come from the combined bearings and maintain the same features of construction.

Adjustable Combined Bearings with Plastic Axial Roller

Send E-mail Request Quote

Product Parameter

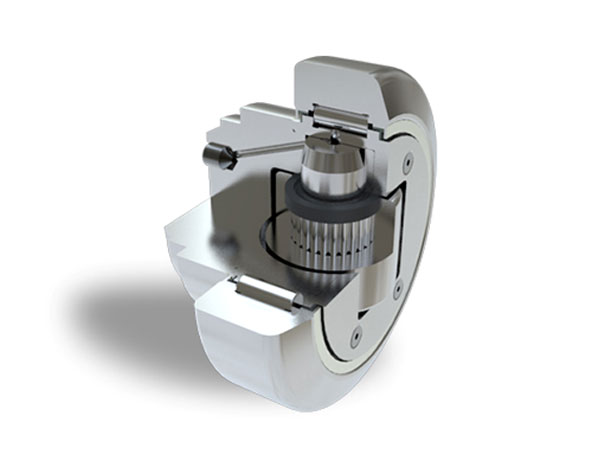

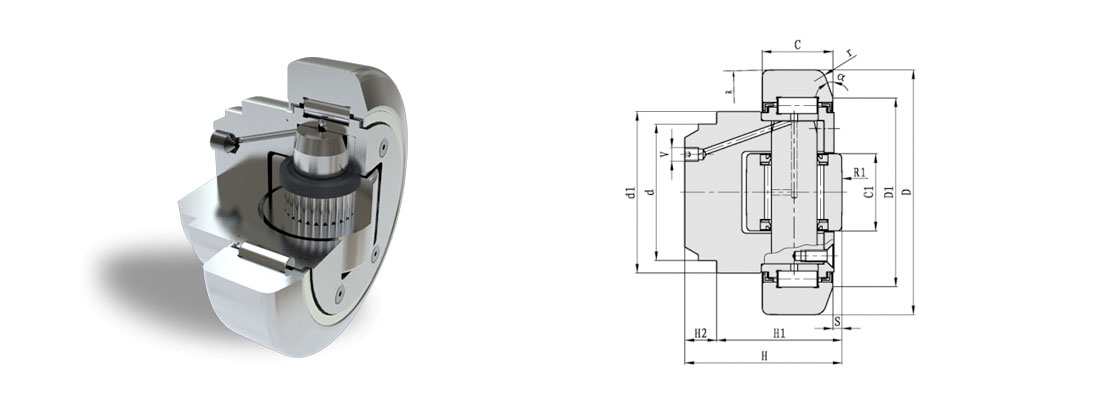

Stardard Combined Bearings

Bearing No.	Boundary Dimensions（mm)								Load ratings(KN)				Limiting Speeds (r/min)	Mass(Kg)
Bearing No.	D	T	d	H	h	B	S	r	Cr	Cor	Ca	Coa	Limiting Speeds (r/min)	Mass(Kg)
40053	52.5	40	30	33	27	17	15	2	24	32	7	7	800	0.46
40054	62	42	30	37.5	30.5	20	20	3	31	35.5	11	11	900	0.53
40055	70.1	48	35	44	36	23	22	4	45.5	51	13	13	900	0.8
40056	77.7	53	40	48	36.5	23	24	4	48	56.8	18	18	800	1
40057	77.7	53	40	40	29	23	26	4	48	56.8	18	18	800	0.87
40058	88.4	59	45	57	44	30	26	3	68	72	23	23	750	1.62
40059	101.2	67	50	46	33	28	30	3	73	82	25	27	700	1.74
40060	107.7	71	55	54	40	31	34	5	81	95	31	36	650	2.27
40061	107.7	71	60	69	55	31	34	5	81	95	31	36	650	2.82
40062	123	80	60	72.3	56	37	40	5	110	132	43	50	550	3.89
40063	149	108	60	78.5	58.5	45	50	3	151	192	69	71	450	6.52
40064	149	108	60	86	67	45	50	3	151	192	68	71	450	8.76

Adjustable With Shims

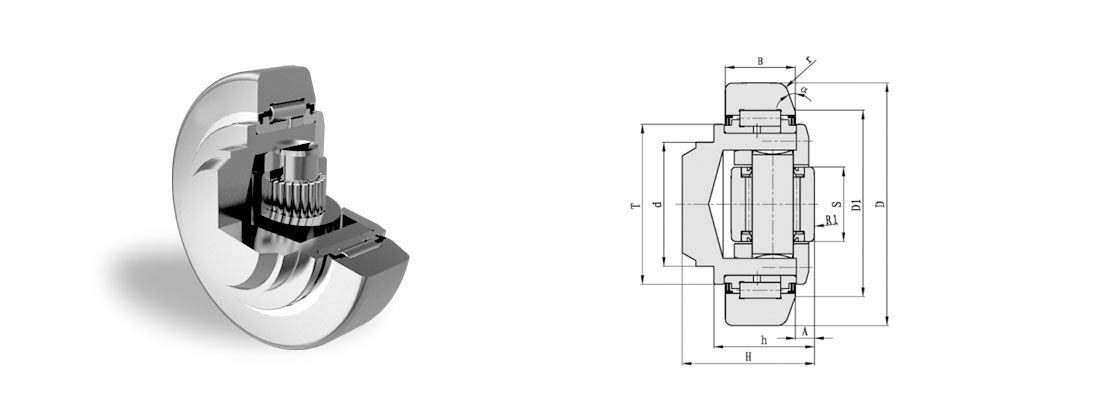

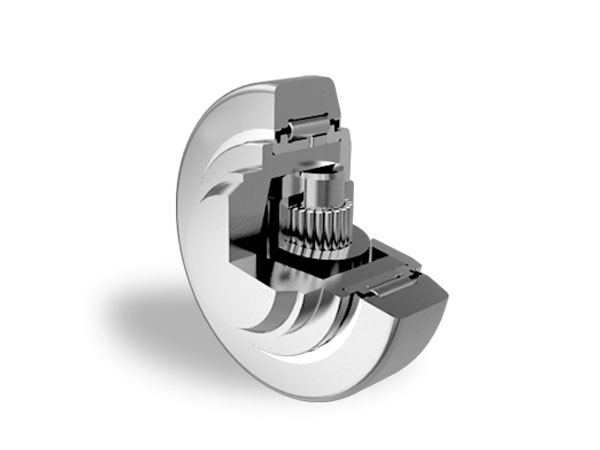

Adjustable Combined Bearings with shims

Bearing No.	Boundary Dimensions（mm)								Load ratings(KN)
Bearing No.	D	T	d	H	h	B	S	r	Cr	Cor	Ca	Coa
4.072	62	42	30	43	33	20	16	3	31	35.5	8	8
4.073	70.1	35	48	48	40	23	16	4.5	45.5	51	8	8
4.074	77.7	54	40	50.5	39.5	23	21	4.5	48	56.8	14	14
4.075	77.7	54	40	45	34	23	21	4.5	48	56.8	14	14
4.076	88.4	59	45	61	48	30	21	4	68	72	14	14
4.077	101.2	67	50	50.5	37.5	28	21	4	73	82	18	19
4.078	107.7	71	55	58.5	44.5	31	33	5	81	95	31	36
4.0784	107.7	71	60	69	55	31	33	5	81	95	31	36
4.079	123	80	60	75.5	59.5	37	33	5	110	132	31	36
4.080	149	103	60	88	69	45	50	5	151	192	68	71

Eccentric Adjustable

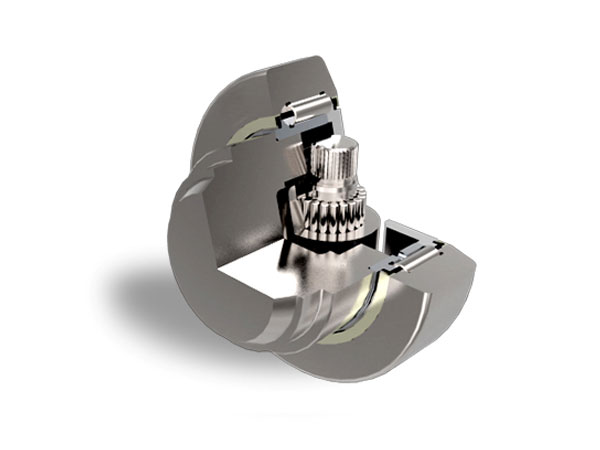

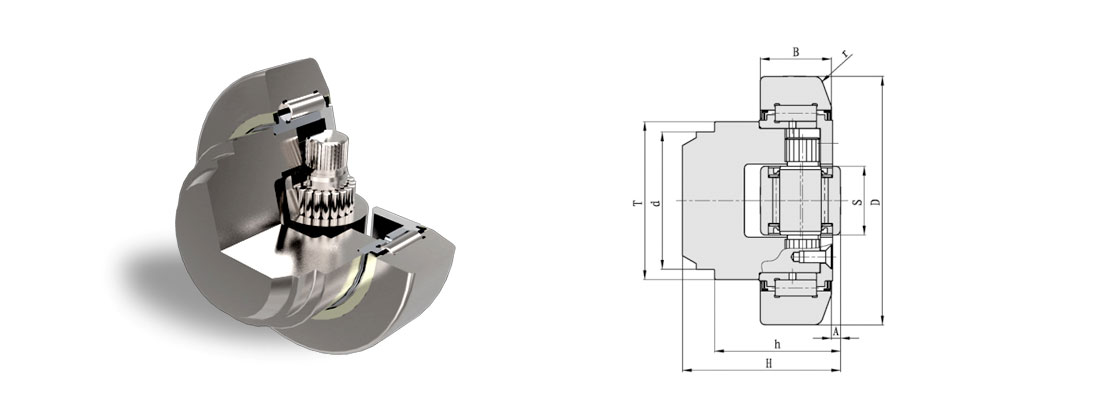

Eccentric Adjustable Combined Bearings

Bearing No.	Boundary Dimensions（mm)								Load ratings(KN)
Bearing No.	D	T	d	H	h	B	S	r	Cr	Cor	Ca	Coa
4.454	62.5	42	30	37.5-39	30.5-32	20	20	3	31	35.5	11	11
4.455	70.1	48	35	44-45.5	36-37.5	23	20	4.5	45.5	51	11	11
4.456	77.7	54	40	48-49.5	37-38.5	23	26	4.5	48	56.8	18	18
4.457	77.7	54	40	40-41.5	29-30.5	23	26	4.5	48	56.8	18	18
4.458	88.4	59	45	57-58.5	44-45.5	30	26	4	68	72	23	23
4.459	101.6	69	50	46-48	33-35	26	30	4	73	82	25	27
4.460	107.7	69	55	54-56	40-42	31	30	4	81	95	25	27
4.461	107.7	69	60	69-71	55-57	31	30	5	81	95	25	27
4.462	123	80	60	72.3-76.3	56-60	37	34	5	110	132	31	36
4.463	149	108	60	77.7-81.5	58.5-62.5	45	34	5	151	192	31	36

Adjustable Heavy Duty

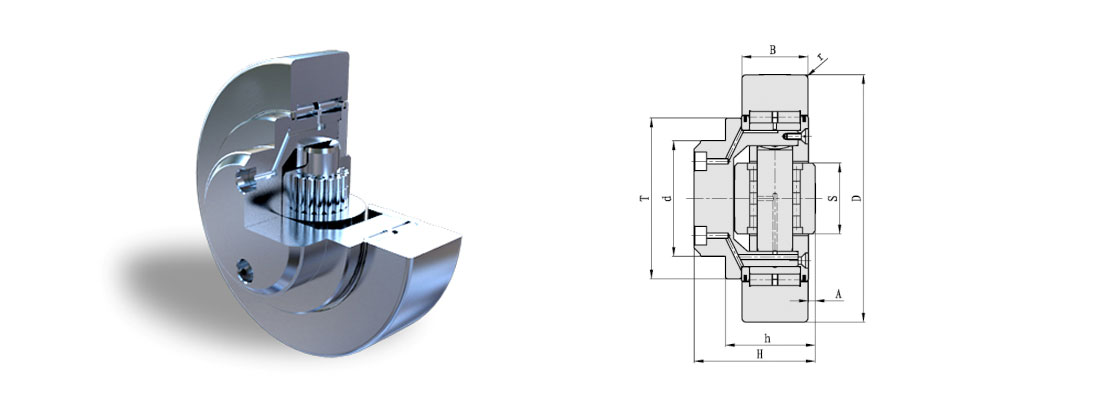

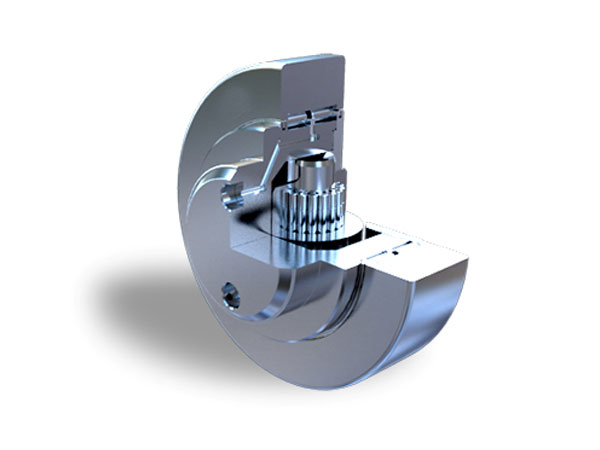

Adjustable Heavy Duty Combined Bearings

Adjustable Heavy duty Combined bearings

Bearing No.	Boundary Dimensions（mm)								Load ratings(KN)
Bearing No.	D	T	d	H	h	B	S	r	Cr	Cor	Ca	Coa
4.089	165	113	80	69-72	53-56	40	50	3	213	388	85	133
4.090	190	124	100	84.5-87.5	64.5-67.5	48	60	4	266	500	100	180
4.091	200	146	110	94.5-97.5	74.5-77.5	58	75	5	326	681	138	257
4.092	250	168	120	102-105	77-80	60	75	5	369	748	138	257
4.093	280	188	150	119.5-123.5	89.5-93.5	72	90	5	489	1066	182	488
4.094	320	218	150	135-139	110-114	85	90	8	542	1370	210	422
4.0069-170	170	98	70	109.7	84.7	51	49.7	4	195	361	83	129
4.0087-185	185	115	80	100	75	47	49.7	3	235	440	83	130
4.0019-220	220	150	110	115	90	60	70	5	367	719	103	230
4.0038-260	260	184	130	120	95	60	80	5	475	1000	167	279
4.0274-260	260	187	150	135	110	80	80	5	566	1300	167	279
4.0088-300	300	190	140	140	110	80	86	8	549	1272	195	335
4.0278-315	315	240	140	240	120	89	100	8	785	1690	227	392
4.0084-340	340	240	140	150	120	89	100	8	785	1690	227	392
4.0275-390	390	242	170	200	150	118	100	8	1076	2535	227	392

Adjustable with Plastic Axial Roller

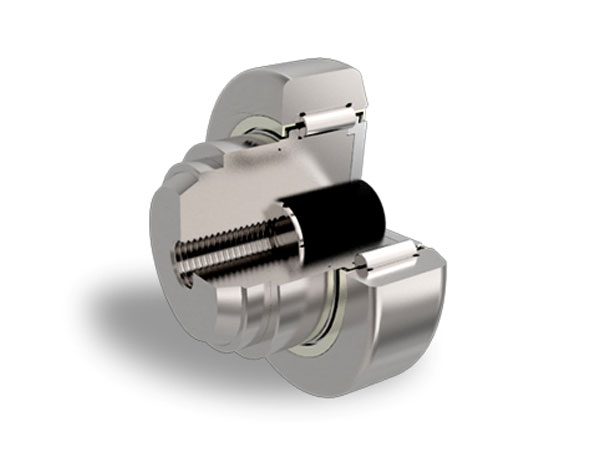

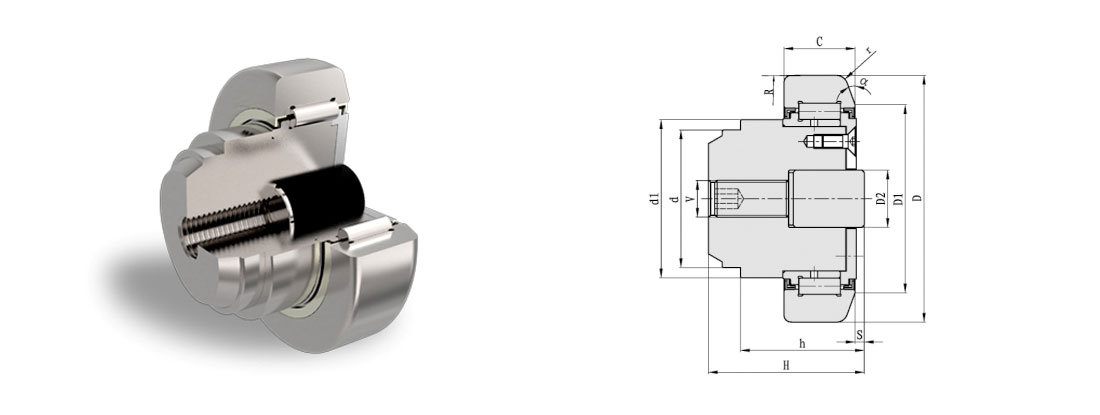

Adjustable Combined Bearings with Plastic Axial Roller

Bearing No.	Boundary Dimensions（mm)											Load ratings(KN)
Bearing No.	d	d1	D	C	H	h	D1	D2	r	S	V	Cr	Cor
0562	30	42	62	20	37.5	30.5	50	18	3	2.5	M10	31	35.5
0563	35	48	70.1	23	44	36	57	18	4.5	2.5	M10	45.5	51
0564	40	53	77.7	23	48	36.5	61	18	4	3	M10	48	56.8
0565	45	59	88.9	30	57	44	68	30	4	3.5	M12	68	72
0566	60	69	107.7	31	69	55	82	25	5	4	M16	81	95
0567	60	80	123	37	72.3	56	92.5	40	5	5	M16	110	132
0568	60	103	149	45	78.5	58.5	121	40	5	5.5	M16	151	192
0569	60	103	149	45	86	67	121	40	5	5.5	M16	151	192

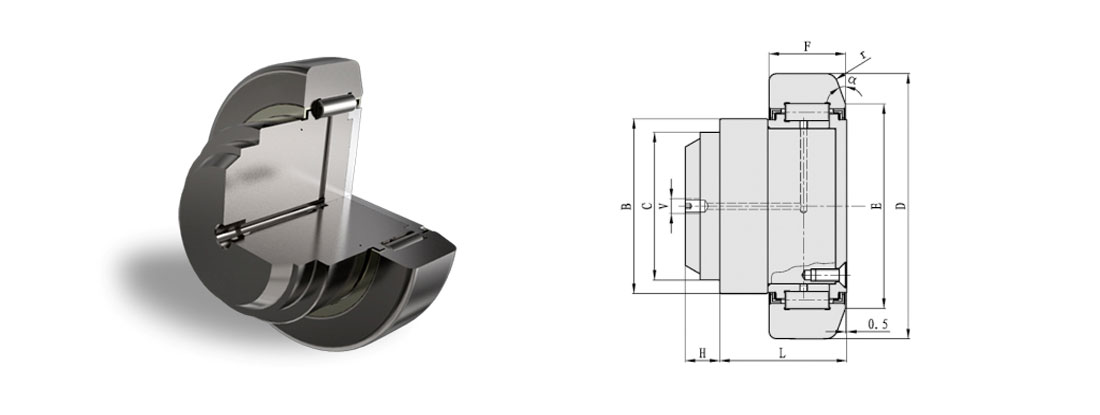

Precision Radial Bearings
