Adapter sleeves

Adapter sleeves

Features:

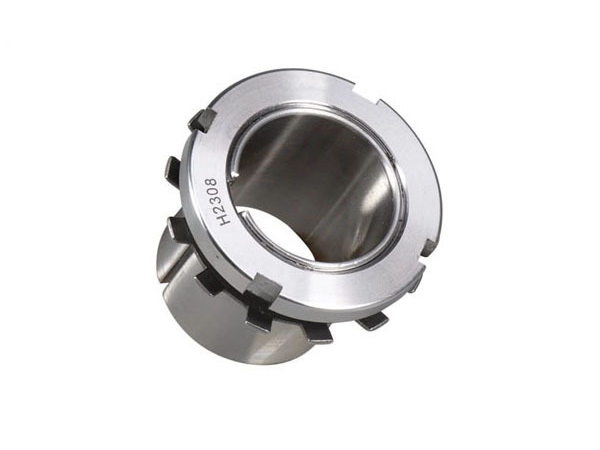

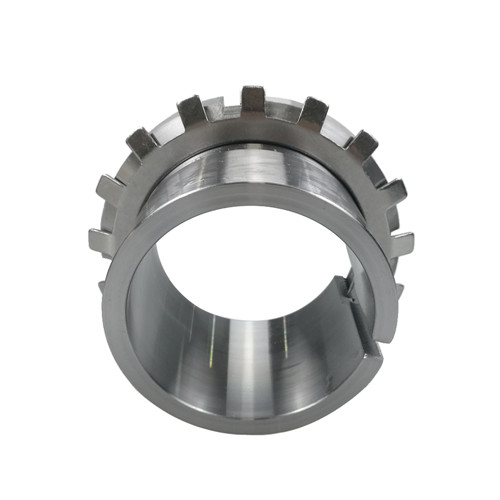

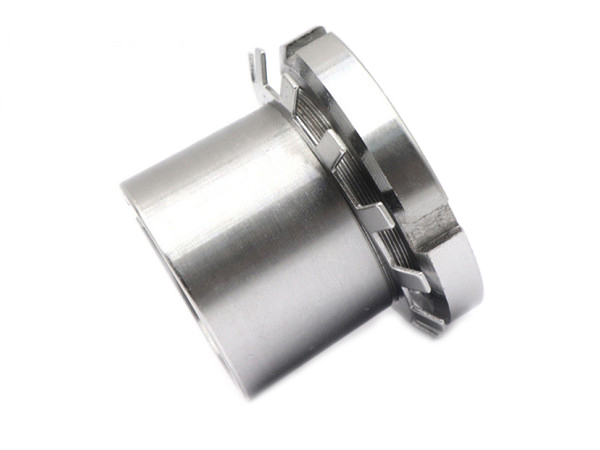

Adapter sleeves are the most commonly used components for bearings with tapered bores when locating on cylindrical shafts, as they can be used on plain or stepped shafts.

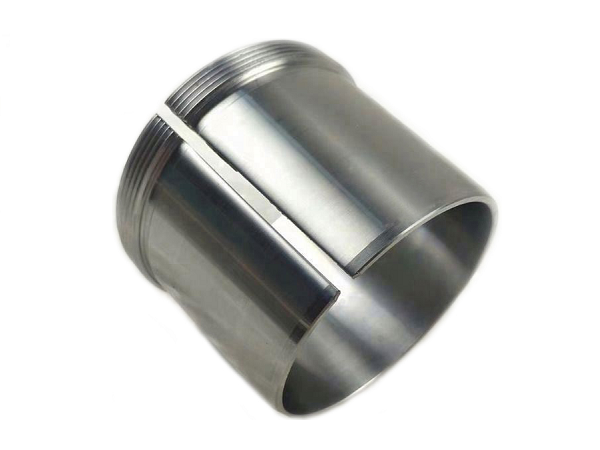

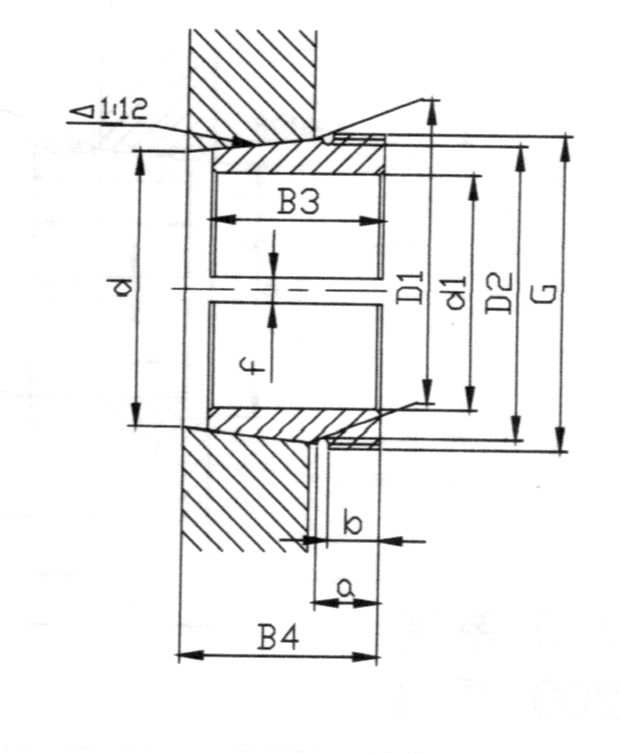

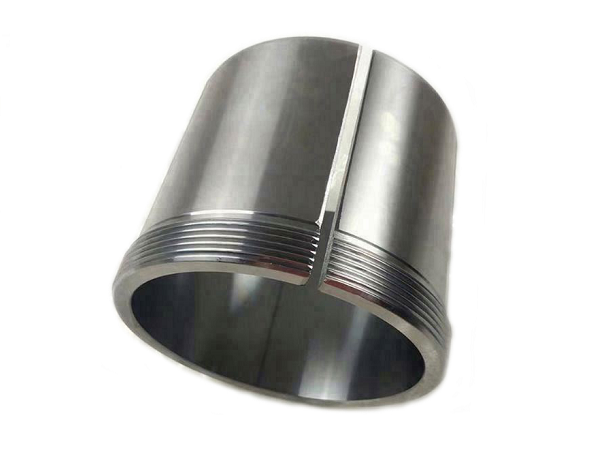

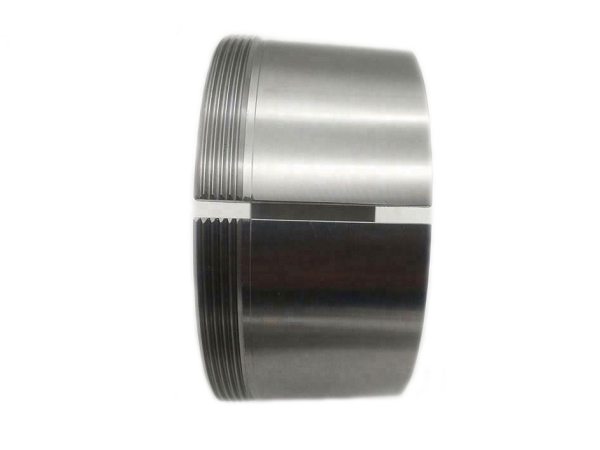

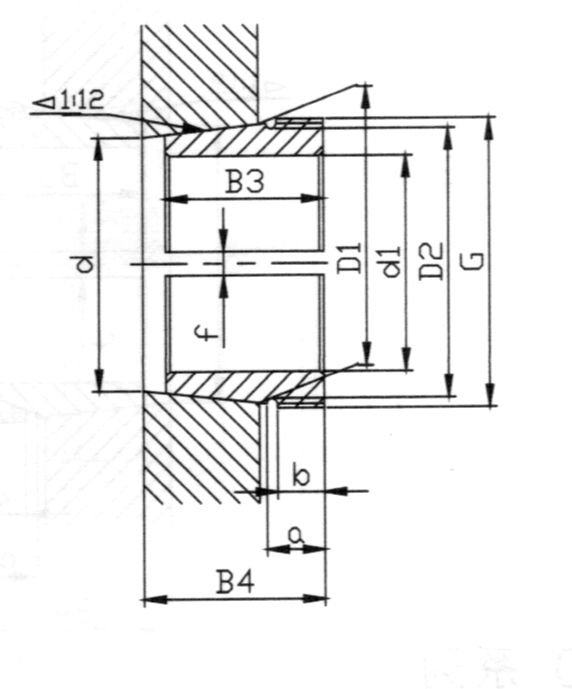

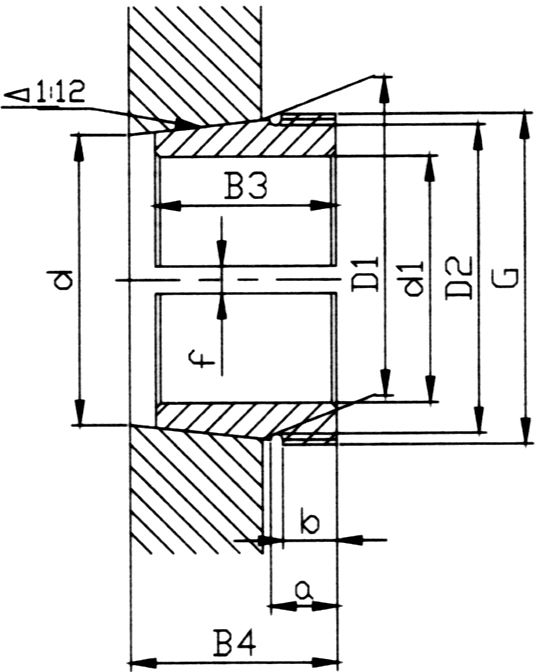

Withdrawal sleeves can be used to mount bearings with a tapered bore onto the cylindrical seat of stepped shafts.

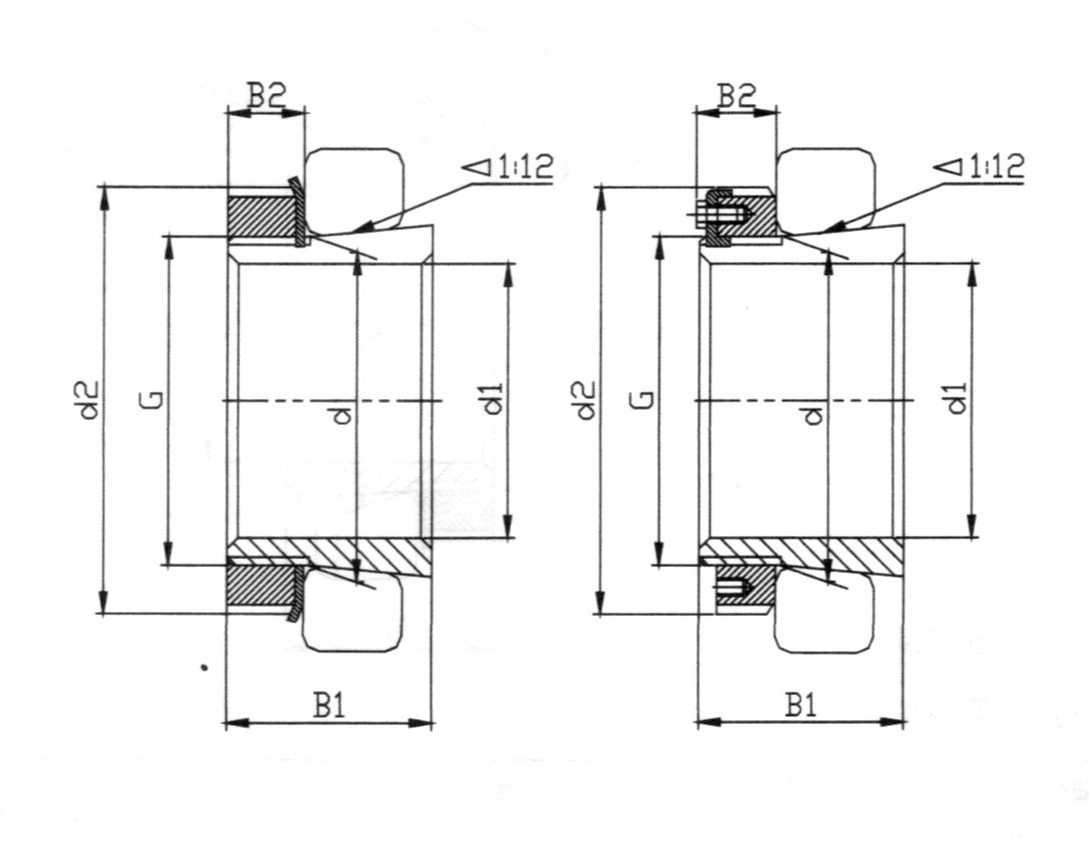

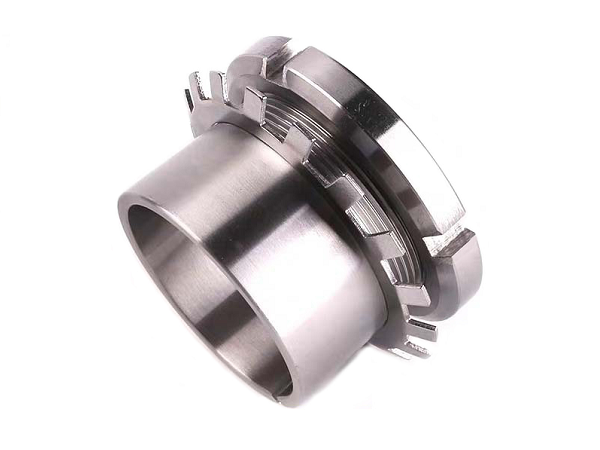

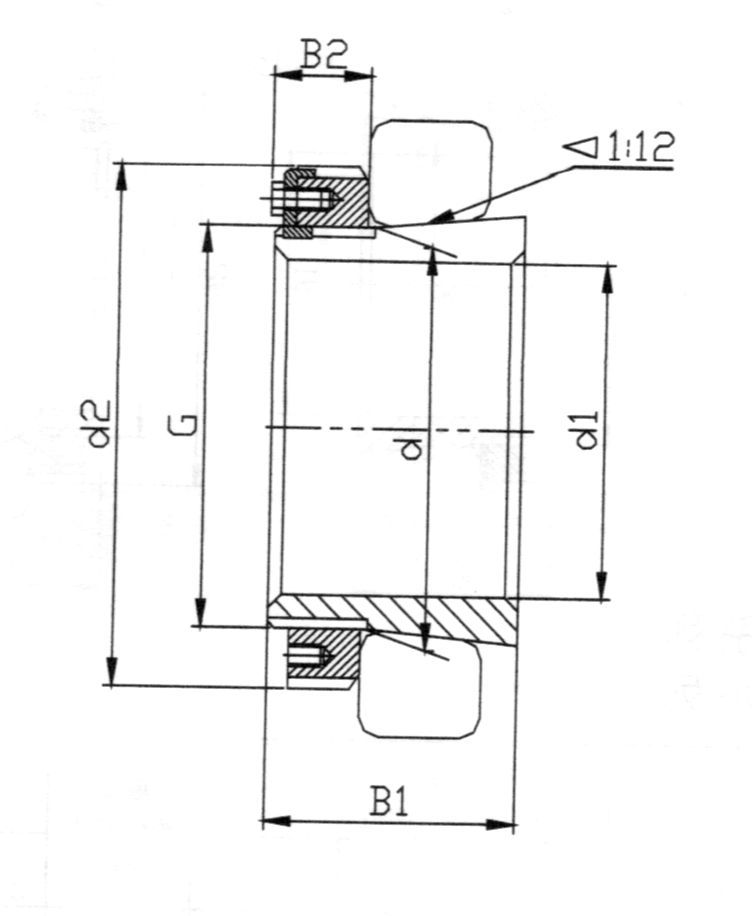

We supply complete range of adapter sleeves & withdrawal sleeves, H200, H300, H3000, H3100, H2300, H3200, H3900, SNW, SNP, AH3900, AH208, AH200, AH300, AH2300, AH3200, AH3000, AH3100, KM, HM, MB, MA, MBL, MS, MSL, etc.

Send E-mail Request Quote

Product Parameter

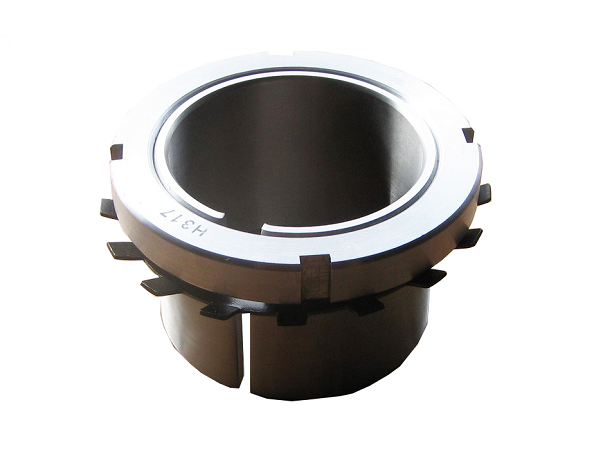

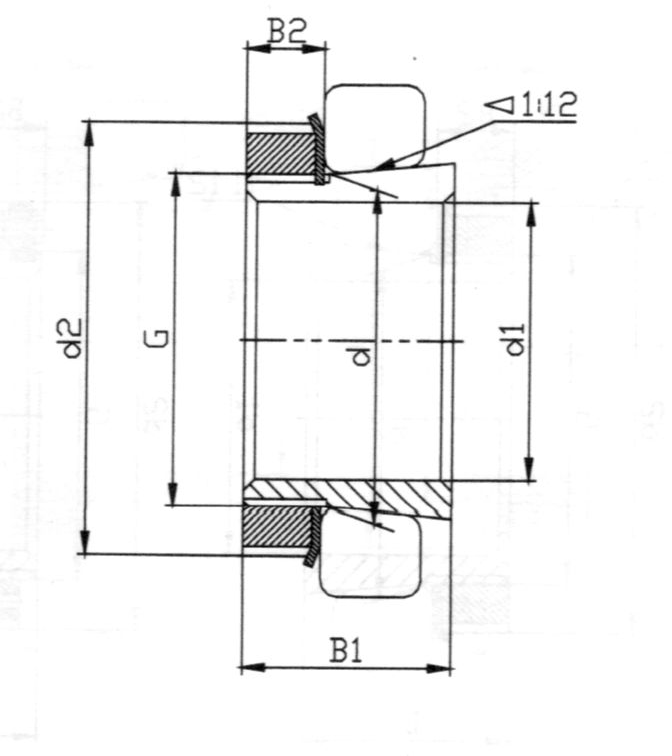

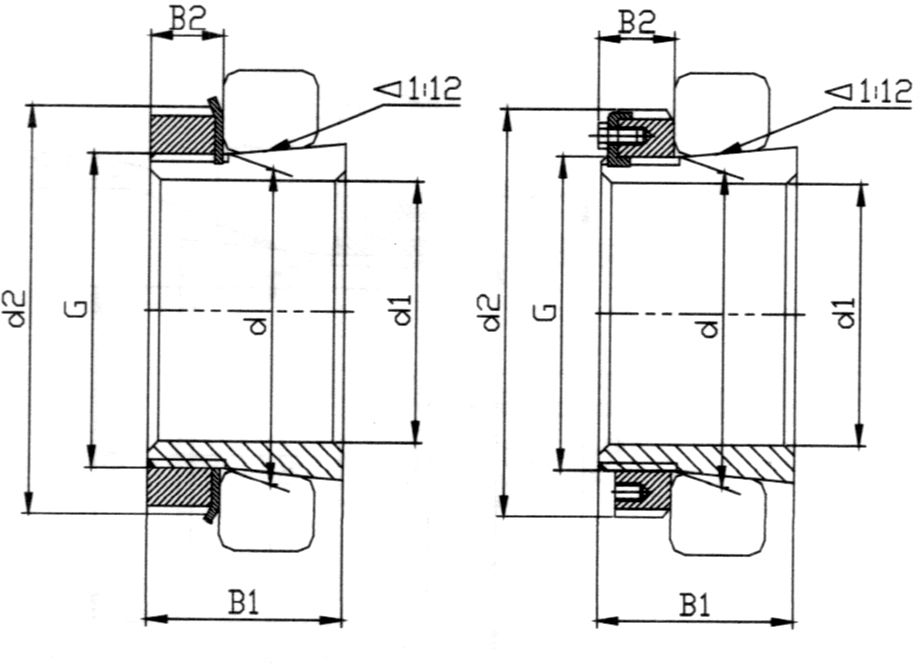

H200 H300 Series Adapter sleeves

H200 H300

Adapter Sleeve

 Shaft Dia d

（in）

 Dimension（mm）

Weight (kg)

 Composition
HS

in

 HA

in

 HE

in

 H

mm

 d d2 B1 B2 G Sleeve Locknut Lockwasher
H204 5/8 17 20 32 24 7 M20×1 0.041 A204 KM4 MB04
H205 11/16 3/4 20 25 38 26 8 M25×1.5 0.07 A205 KM5 MB05
H206 7/8 15/16 1 25 30 45 27 8 M30×1.5 0.1 A206 KM6 MB06
H207 1-1/8 1-3/16 30 35 52 29 9 M35×1.5 0.13 A207 KM7 MB07
H208 1-3/8 1-5/16 1-1/4 35 40 58 31 10 M40×1.5 0.17 A208 KM8 MB08
H209 1-7/16 1-1/2 40 45 65 33 11 M45×1.5 0.23 A209 KM9 MB09
H210 1-5/8 1-11/16 1-3/4 45 50 70 35 12 M50×1.5 0.27 A210 KM10 MB10
H211 1-7/8 1-15/16 2 50 55 75 37 12 M55×1.5 0.31 A211 KM11 MB11
H212 2-1/8 2-1/16 55 60 80 38 13 M60×2 0.35 A212 KM12 MB12
H213 2-3/8 2-3/16 2-1/4 60 65 85 40 14 M65×2 0.4 A213 KM13 MB13
H214 60 70 92 41 14 M70×2 0.6 A214 KM14 MB14
H215 2-5/8 2-7/16 2-1/2 65 75 98 43 15 M75×2 0.71 A215 KM15 MB15
H216 2-7/8 2-11/16 2-3/4 70 80 105 46 17 M80×2 0.88 A216 KM16 MB16
H217 2-15/16 3 75 85 110 50 18 M85×2 1.02 A217 KM17 MB17
H218 3-1/8 3-3/16 3-1/4 80 90 120 52 18 M90×2 1.2 A218 KM18 MB18
H219 3-5/16 3-1/4 85 95 125 55 19 M95×2 1.35 A219 KM19 MB19
H220 3-7/16 3-1/2 90 100 130 58 20 M100×2 1.5 A220 KM20 MB20
H221 95 105 140 60 20 M105×2 1.7 A221 KM21 MB21
H222 3-15/16 4 100 110 145 63 21 M110×2 1.9 A222 KM22 MB22
H304 5/8 17 20 32 28 7 M20×1 0.045 A304 KM4 MB04
H305 11/16 3/4 20 25 38 29 8 M25×1.5 0.075 A305 KM5 MB05
H306 7/8 15/16 1 25 30 45 31 8 M30×1.5 0.11 A306 KM6 MB06
H307 1-1/8 1-3/16 30 35 52 35 9 M35×1.5 0.14 A307 KM7 MB07
H308 1-3/8 1-5/16 1-1/4 35 40 58 36 10 M40×1.5 0.19 A308 KM8 MB08
H309 1-7/16 1-1/2 40 45 65 39 11 M45×1.5 0.25 A309 KM9 MB09
H310 1-5/8 1-11/16 1-3/4 45 50 70 42 12 M50×1.5 0.3 A310 KM10 MB10
H311 1-7/8 1-15/16 2 50 55 75 45 12 M55×2 0.35 A311 KM11 MB11
H312 2-1/8 2-1/16 55 60 80 47 13 M60×2 0.39 A312 KM12 MB12
H313 2-3/8 2-3/16 2-1/4 60 65 85 50 14 M65×2 0.46 A313 KM13 MB13
H314 60 70 92 52 14 M70×2 0.72 A314 KM14 MB14
H315 2-5/8 2-7/16 2-1/2 65 75 98 55 15 M75×2 0.83 A315 KM15 MB15
H316 2-7/8 2-11/16 2-3/4 70 80 105 59 17 M80×2 1 A316 KM16 MB16
H317 2-15/16 3 75 85 110 63 18 M85×2 1.2 A317 KM17 MB17
H318 3-1/8 3-3/16 3-1/4 80 90 120 65 18 M90×2 1.35 A318 KM18 MB18
H319 3-5/16 3-1/4 85 95 125 68 19 M95×2 1.55 A319 KM19 MB19
H320 3-7/16 3-1/2 90 100 130 71 20 M100×2 1.7 A320 KM20 MB20
H321 95 105 140 74 20 M105×2 1.95 A321 KM21 MB21
H322 3-15/16 4 100 110 145 77 21 M110×2 2.2 A322 KM22 MB22
